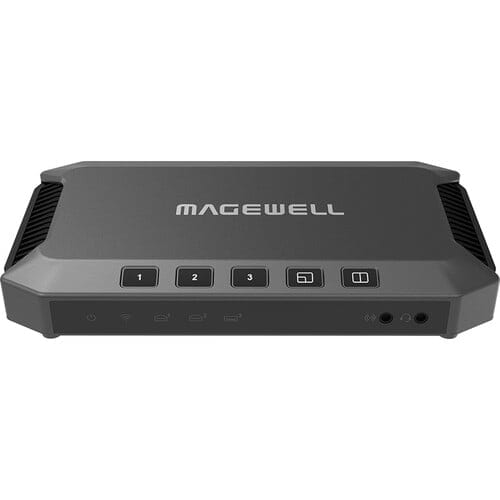

Magewell 35060 USB Fusion Capturekort 2 x HDMI og USB 3.0 Inn / USB-C Ut

Varenummer: 505916
Produktnummer: 35060
EAN: 6936572401409
Magewell
inkl. mva.

USB Fusion Specifications

document Download

Scene Input

  • HDMI

    • Port: 2x HDMI 1.4 Type-A port (HDMI 1 / HDMI 2)

    • Resolution/frame rate: up to 1920x1080p, 60fps

    • Color depth: 8-bit, 10-bit, 12-bit

    • Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2

  • USB

    • Port: 1x USB 3.0 Type-A port (WEB CAMERA 3)

    • Resolution/frame rate: up to 2040x1080p, 60fps

    • Codec: YUYV, H.264, MJPG, UYUV, NV12, etc.

  • Imported files

    • Video file: MOV, MP4, MKV

    • Image file: JPEG, PNG, BMP

    • PDF file

    • Resolution: up to 4K, 8-bit

    • Codec: H.264, HEVC (H.265)

  • Web page

    • Transfer protocol: HTTP, HTTPS

Audio Input

  • 1x 3.5mm jack: line in port

    • Format: 2-channel, 48 KHz, 16-bit

  • 1x 3.5mm jack: headset port

    • Format: 2-channel, 48 KHz, 16-bit

    • Standard: CTIA

  • Up to 8-channel 24-bit HDMI-embedded audio at 192KHz

  • Audio from WEB CAMERA 3 port: 2-channel (The audio is disabled by default, and can be enabled on Web UI.)

  • Audio embedded in video files

  • Audio file: MP3, M4A, WAV

  • Audio of web pages

Video Output

  • USB OUT

    • Port: 1x USB 3.0 Type-C port

    • Resolution: 1920x1080, 1280x720, 640x480

    • Frame rate: 60fps, 30fps, 15fps

    • Color sampling: YUYV, NV12, ARGB

  • HDMI OUT

    • Port: 1x HDMI 1.4 Type-A port

    • Output image: HDMI 1, HDMI 2, or PROGRAM image

    • Output resolution: configurable, up to 2048x2048 (Actual resolution options can be limited by the negotiation result between the device and monitor.)

Audio Output

  • 1x 3.5mm jack: headset port

    • Format: 2-channel, 48 KHz, 16-bit

    • Standard: CTIA

  • Audio output via WEB CAMERA 3 port: 2-channel (The audio is disabled by default, and can be enabled on Web UI.)

  • Audio output via USB OUT port: 2-channel, 48 KHz, 16-bit

  • Audio output via HDMI OUT port: 2-channel, 48 KHz, 16-bit

Video Processing & Production

  • HDMI source

    • Video/audio signal data: auto extracted

    • Color space/quantization range: calibration supported

    • De-interlacing: Bob, motion adaptive, motion compensated

    • EDID: self-definition supported

  • USB source

    • Format: selects according to the source

    • Resolution/frame rate: selects according to the source

  • PDF source

    • Supports turning pages, visiting hyperlinks, zooming in and out, etc.

  • Web page source

    • Supports browsing web pages, visiting hyperlinks, zooming in and out, etc.

    • Supports inputting information through the remote keyboard

  • Auto conversion of frame rate/color space

  • Source switching: auto, manual

  • Scene compositing: picture in picture, side by side

  • Scene editing: crop, mirror, scale, rotate, and more

  • Annotation: pens, shapes, text, and more, generated as notes for exporting

  • Presentation: supports creating, importing, exporting, managing presentations, etc.

  • Watermark: supports adding and applying text or picture (JPG, JPEG and PNG) as a watermark into the presentation

Audio Processing & Production

  • Auto resampling

  • Auto audio de-embedding and embedding

  • Controlling volume of audio output and each audio input

  • Supporting microphone gain

Recording and Screenshot

  • Supports configuring recording parameters. The default recording format is 1080p60, H.264, MP4.

    • Source: supports selecting the source to record, and selecting whether to only record the image

    • Encoder: supports setting resolution (up to 1080p60), bitrate mode (CBR or VBR), audio (up to 48Khz, aac, 256kbps), etc.

    • Storage: supports local storing as MP4 or MOV files, splitting files by time or size

  • Screenshot format: JPEG, 1920x1080

  • Storage space: 128 GB

Network

  • Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T

  • Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax, Station mode and AP mode supported

  • USB network

    • Port: USB OUT

Provided Software

  • USB Fusion App: create, edit and control presentations

    • OS version: iOS 12 and later, Android 7.0 and later

  • Web UI: configure and manage the device and presentations, and support to register Magewell Cloud for centralized management

Compatible Software

  • Skype, Zoom, Microsoft Teams

  • Other UVC/UAC compliant, DirectShow/V4L2/AVFoundation compatible software

Compatible OS

  • Windows: Windows 7 and later, Server 2008 and later (x86 & x64)

  • Linux: Linux system with kernel 2.6.35 or later (x86, x64 & ARM)

  • Mac: OS X 10.9 and later, macOS 10.12 and later

Buttons

  • Switch and composite sources

LED Indicators

  • Power / Wi-Fi / HDMI 1 / HDMI 2 / WEB CAMERA 3 indicators

    • On: connected/signal locked

    • Off: not connected/signal not locked

  • Line-in / headset indicators

    • On: connected

    • Pulsing: not connected

Power

  • Power port: 2.1mm x 5.5mm jack

  • Power input: 12V/3A

  • Maximum power usage: 21.3W

Dimensions

  • 186mm x 101.2mm x 30mm

Accessories

  • 1x Power adapter

    • Output: 12.0V/3.33A

  • 1x USB 3.0 cable

Working Environment

  • Operating temperature: 0 to 40 deg C

  • Storage temperature: –20 to 70 deg C

  • Relative humidity: 5% to 90% non-condensing
