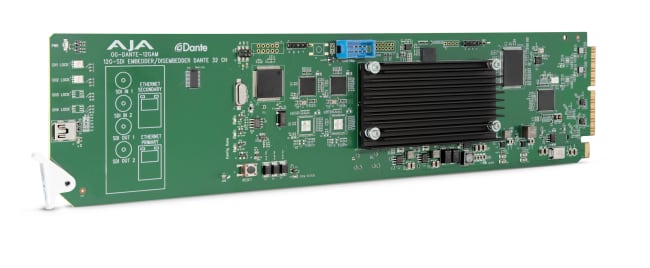

AJA OG-Dante-12GAM openGear kort for Dante

Varenummer: 506797
Produktnummer: OG-DANTE-12GAM
inkl. mva.

openGear kort for Dante audio embedding og de-embedding med doble 12G-SDI innganger og utganger

OG-DANTE-12GAM is an openGear, Dante audio embedder/disembedder, with dual 12G-SDI input and output ports providing up to 32-channels of audio embedding and 32-channels of disembedding simultaneously. OG-DANTE-12GAM provides the bridge between SDI and Dante infrastructures.

Dante audio networking provides digital audio distribution over local and wide-area networks with low latency, using standard network hardware or by connecting into a standard network infrastructure. This offers many advantages over analog, AES, and MADI infrastructures, including audio system scalability, easier installation, and simplified wiring.

A fully populated OG-X-FR openGear frame with ten OG-DANTE-12GAM cards provides an incredible 640-channels of audio bridging in a rack-mountable form factor for a wide range of needs.


- Support for 12G/6G/3G-SDI audio embedding to and from the Dante audio ecosystem
- Dual, and independent 12G-SDI Input and Output ports, each supporting 16 audio channels, totaling 64-channels per card in a compact design
- 1x Primary and 1x Secondary GigE ports for Dante network redundancy
- 64-channels of simultaneous SDI/Dante audio bridging per card
- 2x Internal Signal Generators which enables transmitting Dante audio channels over SDI without having an external SDI source signal
- DashBoard support for remote signal status and configuration
- Compatible with a range of Dante software from Audinate including Dante Controller for routing and configuration choices
- High density and small form factor, enabling 10 cards to be utilized in a single openGear frame for up to 640-channels of SDI/Dante audio bridging
- Supported within OG-X-FR and OG-3-FR openGear frames
- Hot swap capable
- Five year warranty
