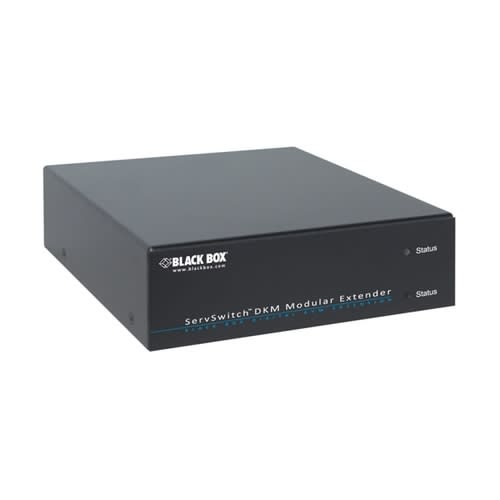

Black Box Modulær KVM ekstender med integrert strømforsyning

Design your KVM Extender with the interfaces you need.

• Combine and extend multiple video and peripheral interfaces exactly to your needs.
• Use a chassis with transmitter modules on your CPU end and the corresponding chassis with receiver modules at your user station.
• Chassis available with 2-, 4-, 6- or 21 slots.
• Choose the cable media depending on your range requirements: CATx up to 140m, multi-mode up to 1000m, single-mode up to 10km.
• DisplayPort signals with 4K/60 resolution can be extended up to 1km over mulit-mofr ot 5km using single-mode cables.
• Pixel perfect resolution up to 2048 x 1152 SL DVI, DL DVI up to 2560 x 1600 (2x 2K), HDMI 1080p or DisplayPort up to 4K over the full distance.
• 24Bit color depth.
• Video options for DVI, Display Port, HDMI, SDI, VGA in, and many other analogue video inputs.
• Suitable for multi-video and high demanding video applications.
• Options for analogue & digital audio, RS-232 or RS-422 serial data, embedded USB 2.0 with 36 Mbps and transparent USB 2.0 with 480 Mbps.
• Various power options with AC and DC, internal and external power supplies, with or without redundancy.
• Local monitoring with separate splitter cable (ACXSPL12).
• Use them as standalone point-to-point KVM extenders or together with the DKM/DKM FX switching system.
• Warranty: 2 Year Double Diamond™ Warranty (Standard)
