Ethernet
4 x 10/100/1000 BASE-T with loop outputfor additional control panels or computers.
Blackmagic ATEM 2 M/E Advanced Panel 40
Varenummer: 511315
Produktnummer: SWPANELADV2ME40
EAN: 9338716007862
inkl. mva.

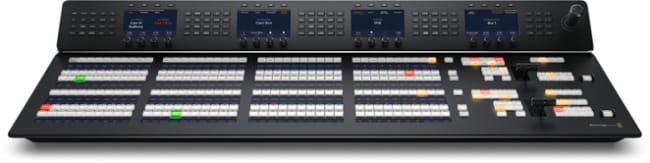

The 2 M/E model features 2 M/E rows with 40 input buttons and 4 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
Connections
Software Updates
1 x USB-C for firmware updates.
Product Specifics
Number of Mix Effects Rows
2
Direct Cross Points
40
Shifted Cross Points
80
Crosspoint Button Type
Tri-Color LED
Crosspoint Label
6 rows 24 character LCD
On-Air indicator
12
Power Status Indicators
None
DSK Transition Selectors
4 x Auto, Cut, Tie/Preview
Preview Transition
2
Transition Rate Displays
Via main menu
LCD Menu Displays
4
Menu Control
4 x 20 buttons
Dedicated Macro Buttons
2 x 40
Transport Control Buttons
8
Destination Bus
2
Source Select Bus
2
Fader Bar
2
3 Axis Joystick
1
Numeric Keypad
1
Software
Software Applications
ATEM Software Control Panel.
Operating Systems
Mac 11.1 Big Sur,
Mac 12.0 Monterey or later.
Windows 10 and 11.
Power Requirements
Input Voltage
2 x Internal 100 - 240V AC.
Redundant Power
Yes
Power Usage
160W
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
Up to 95%
What's Included
ATEM 2 M/E Advanced Panel 40
Welcome wallet with QR code for software download
Warranty
12 Month Limited Manufacturer’s Warranty.
