HDMI Video Outputs 4 x HDMI 2.0 type A connector with support for HD, UHD and 4K in single link or 4320p60 in Quad Link.
Embedded Audio Support 16 channels of embedded audio on all SDI loop outputs and 8 channels on the HDMI outputs.
Multi Rate Support 1.5G, 3G, 6G, 12G, 2SI Dual Link 12G‑SDI, 2SI Quad Link 12G‑SDI, Square Division Quad Link 12G‑SDI.
Reclocking Yes Standards SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K DCI Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 Auto switching between 2SI and Square Division 8K DCI Video Standards 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI Auto switching between 2SI and Square Division SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 SDI Video Rates SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit. SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV and RGB. HDMI Output Standards SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 HDMI Color Space REC 709, REC 2020 HDMI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test. Scopes Scopes Waveform, RGB/YUV Parade, Vector, Histogram Viewing Modes Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDR graticules. Operating Systems Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10, 64-bit. Settings Control Settings Control 6 buttons and spin knob for menu and settings control, 2.2 inch color LCD display. Power Requirements Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Consumption 25 Watts Operational Voltage Range 100 - 240V AC Environmental Specifications Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing What's Included Teranex Mini SDI to HDMI 8K HDR Welcome wallet with QR code for software download Warranty 1 year Limited Manufacturer’s Warranty.
HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K DCI Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 Auto switching between 2SI and Square Division
8K DCI Video Standards 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI Auto switching between 2SI and Square Division
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
SDI Video Rates SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G‑SDI, 6G‑SDI and 12G‑SDI
SDI Color Space YUV and RGB. HDMI Output Standards SD Video Standards None HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 HDMI Color Space REC 709, REC 2020 HDMI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test. Scopes Scopes Waveform, RGB/YUV Parade, Vector, Histogram Viewing Modes Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDR graticules. Operating Systems Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10, 64-bit. Settings Control Settings Control 6 buttons and spin knob for menu and settings control, 2.2 inch color LCD display. Power Requirements Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Consumption 25 Watts Operational Voltage Range 100 - 240V AC Environmental Specifications Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing What's Included Teranex Mini SDI to HDMI 8K HDR Welcome wallet with QR code for software download Warranty 1 year Limited Manufacturer’s Warranty.
HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60

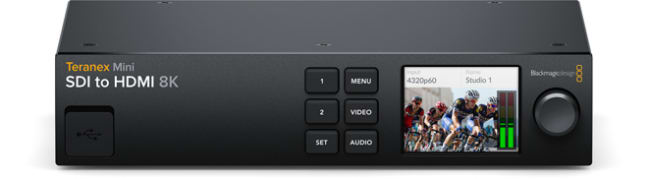

HDMI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test. Scopes Scopes Waveform, RGB/YUV Parade, Vector, Histogram Viewing Modes Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDR graticules. Operating Systems Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10, 64-bit. Settings Control Settings Control 6 buttons and spin knob for menu and settings control, 2.2 inch color LCD display. Power Requirements Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Consumption 25 Watts Operational Voltage Range 100 - 240V AC Environmental Specifications Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing What's Included Teranex Mini SDI to HDMI 8K HDR Welcome wallet with QR code for software download Warranty 1 year Limited Manufacturer’s Warranty.
Viewing Modes Two by scopes with picture overlay with opacity control. Waveform and Parade with standard and HDR graticules. Operating Systems Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10, 64-bit. Settings Control Settings Control 6 buttons and spin knob for menu and settings control, 2.2 inch color LCD display. Power Requirements Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Consumption 25 Watts Operational Voltage Range 100 - 240V AC Environmental Specifications Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing What's Included Teranex Mini SDI to HDMI 8K HDR Welcome wallet with QR code for software download Warranty 1 year Limited Manufacturer’s Warranty.
Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10, 64-bit. Settings Control Settings Control 6 buttons and spin knob for menu and settings control, 2.2 inch color LCD display. Power Requirements Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Consumption 25 Watts Operational Voltage Range 100 - 240V AC Environmental Specifications Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing What's Included Teranex Mini SDI to HDMI 8K HDR Welcome wallet with QR code for software download Warranty 1 year Limited Manufacturer’s Warranty.
Settings Control 6 buttons and spin knob for menu and settings control, 2.2 inch color LCD display. Power Requirements Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. Power Consumption 25 Watts Operational Voltage Range 100 - 240V AC Environmental Specifications Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing What's Included Teranex Mini SDI to HDMI 8K HDR Welcome wallet with QR code for software download Warranty 1 year Limited Manufacturer’s Warranty.
Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Operational Voltage Range 100 - 240V AC Environmental Specifications Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non‑condensing What's Included Teranex Mini SDI to HDMI 8K HDR Welcome wallet with QR code for software download Warranty 1 year Limited Manufacturer’s Warranty.
Relative Humidity 0% to 90% non‑condensing What's Included Teranex Mini SDI to HDMI 8K HDR Welcome wallet with QR code for software download Warranty 1 year Limited Manufacturer’s Warranty.
