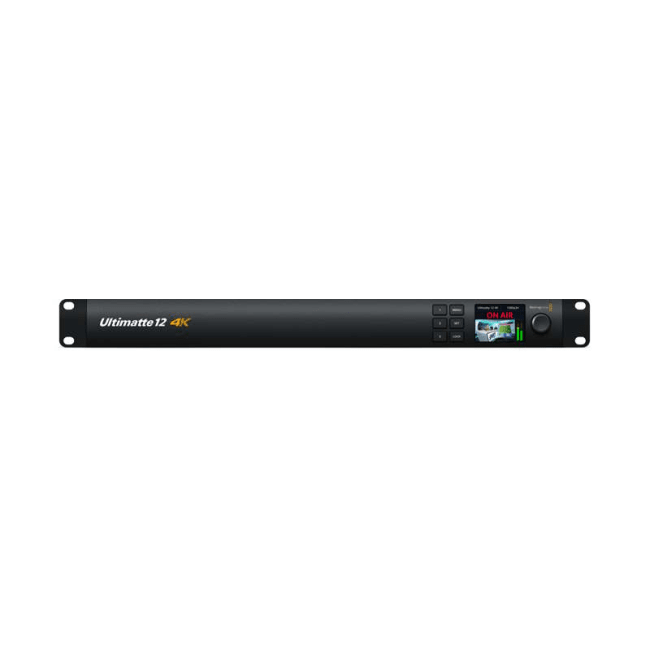

Blackmagic Ultimatte 12 4K

Varenummer: 511587
Produktnummer: ULTMKEY12/C/4K
EAN: 9338716007626
inkl. mva.

Description

Ultimatte 12 4K is an advanced real time compositing processor designed for keying live action video with next generation broadcast graphics, virtual sets and more. Ultimatte 12 4K features new algorithms and color science, incredible edge handling and color separation, amazing color fidelity, and better spill suppression than ever before. The high performance 12G-SDI design gives you the power to work in Ultra HD and HD with sub pixel processing for an amazing image.



Connections

SDI Video Inputs

8

SDI Video Outputs

9

SDI Video Loop Outputs

7

Reclocked SD, HD, Ultra HD for corresponding inputs.

SDI Rates

270Mb, 1.5G, 3G, 6G, 12G.

Video Input Re-Sync

On all inputs.

Reference Connections

1 x BNC In, 1 x BNC Out.

Tri-Sync or Black Burst.

GPIO

DE15

Ethernet

Up to 10Gb/s for device control and loading stills into Media Pool.

Computer Interface

1 x USB-C 3.0 for device configuration and software updates.

Blackmagic Design ULTMKEY12/A/HDM Ultimatte 12 HD Mini Video Prosessor for blå/grønnskjerm

Kompakt chromakey prosessor for live video HDMI HD

511748
ULTMKEY12/A/HDM

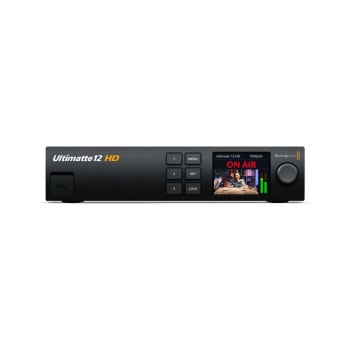

Blackmagic Design ULTMKEY12/B/HD Ultimatte 12 HD Video Prosessor for blå/grønnskjerm

Sanntids chromakey prosessor for HD video

511749
ULTMKEY12/B/HD
ultimBlackmagic Design ULTMKEY12/D/8K Ultimatte 12 8K Video Prosessor for blå/grønnskjerm

Sanntids chromakey prosessor for live 8k video

511750
ULTMKEY12/D/8K
