SDI Video Inputs
1

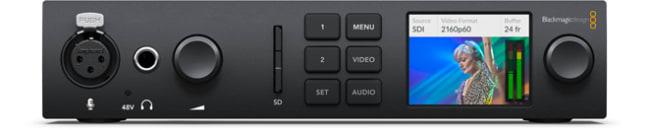

UltraStudio 4K Mini is a portable Thunderbolt 3 capture and playback solution packed with the latest broadcast technology! You get broadcast quality 8 and 10‑bit high dynamic range capture in all formats up to 4K DCI at 60p, and 12‑bit high dynamic range capture in all formats up to 4K DCI at 30p. Plus, the built in SD card reader lets you mount camera media directly on your computer so you can start editing immediately!
1
2 x program out, 1 x loop out.
270Mb, 1.5G, 3G, 6G, 12G.
Component YUV or Composite NTSC/PAL. Component is switchable between SD and HD.
2 channels of professional balanced analog audio with 1/4 inch Jack connectors.
2 channels of professional balanced analog audio with 1/4 inch Jack connectors.
16 Channels embedded in SD/HD/2K/UHD/4K.
16 Channels embedded in SD/HD/2K/UHD/4K.
1
1
8 Channels embedded in SD/HD/UHD/4K.
8 Channels embedded in SD/HD/UHD/4K.
1 x XLR microphone input. 48V Phantom Power switchable via software control.
Tri-Sync or Black Burst.
Sony™ compatible RS-422 deck control port. Serial ports TxRx direction reversible under software control.
1 x USB-C 3.1 Gen 1 (up to 5 Gb/s).
UHS-I and UHS-II compatible.
Thunderbolt™ 3 (Mac OS, Windows and Linux) with 45W host charging capability.
Capturekort | |
---|---|
Grensesnitt mot PC/Mac | USB-C |
Egenskaper | |
---|---|
Tilkobling | HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI, Composite, Komponent |
UNSPSC | 43201531 |
