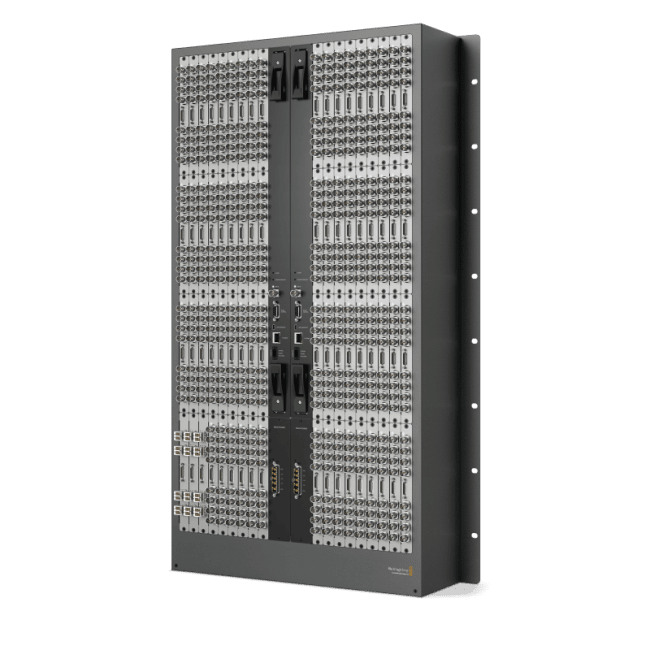

Blackmagic Universal Videohub 288

Varenummer: 509481
Produktnummer: VHUBUV/288CH
EAN: 9338716000962
inkl. mva.

Rack frame lets you add up to 72 BNC SDI or optical fiber SDI interfaces plus a single 72 x 72 or dual 288 x 288 crosspoint cards and up to two power cards. Add a single crosspoint for affordability, or add dual crosspoint and power cards for full redundancy. Includes removable fan tray and fans.


SDI Video Input

Up to 288 x SDI/HD-SDI, 3G-SD I and ASI. Can be BNC SDI or optical fiber SDI.

SDI Video Output

Up to 288 x SDI/HD-SDI, 3G-SDI and ASI with SDI re-clocking. Can be BNC SDI or optical fiber SDI.

Reference Signal

1 x Black Burst or Tri-level Sync input for all SD, HD and Optical connections.

Multi Rate Support

Auto detection of SD, HD or 3G-SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI.


USB 2.0 high speed (480Mb/s) interface.

Device Control

Up to 288 bidirectional Sony™ compatible RS-422 deck control ports via breakout cable.

Router Control

Use either RJ45 Ethernet, Smart Control or Master Control shared over IP network.

Router Configuration

RJ45 Ethernet for Videohub configuration and USB 2.0 for IP settings only.

ASI Support


RS-422 Router Control

1 x input for controlling router crosspoint switching.


On all SDI outputs.

Physical Installation

18 rack unit size. Less than 6 inches deep.

Environmental Specifications

Operating temperature: 0° to 40° C
(32° to 104° F)

Storage temperature: -20° to 45° C
(-4° to 113° F)

Relative Humidity: 0% to 90% non‑condensing

What's Included

Universal Videohub 288

Welcome wallet with QR code for software download


3 Year Limited Manufacturer's Warranty.
