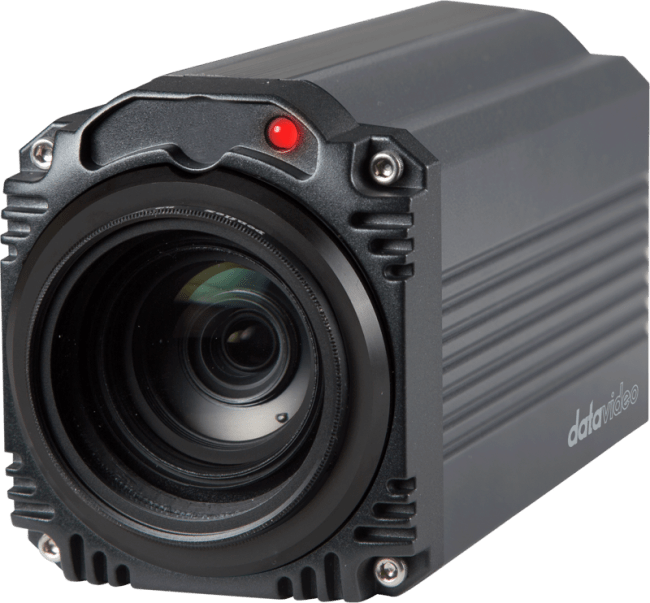

Stunning Full HD resolution
1/2.7 inch CMOS sensor. 1080p Full HD resolution.
20x optical zoom, 16x digital zoom
The BC-50's 20x optical zoom and 16x digital zoom allows you to mount it near or far and still get great, sharp shots.
3G-SDI output
3G-SDI output for use in regular workflows. Tally lights for broadcast level applications.
Controllable by VISCA/Pelco-C/Pelco-D
The BC-50 supports VISCA/Pelco-D/Pelco-P enabling the camera to be controlled via RS-485.
Compression H.264/H.265/Motion-JPEG and IP Streaming
The BC-50 camera can provide the H.264 / H.265 / MJPEG compressed video signal, as well as the RTMP protocol for broadcasting to Facebook and YouTube via an RJ-45 connection.
Specifications
Video format: 1080p 60/50/30/25, 1080i 60/50, 720p 60/50
Image Sensor: 1/2.7"" progressive scan CMOS sensor
Effective Pixels (approx.): 2.07 Mega pixels
S/N Ratio: 55 dB
Min. Illumination: 0.05 Lux @ (F1.8, AGC ON)
Electronic Shutter: 1/30 ~ 1/10000 sec
Zoom Ratio: 20x Optical zoom, 16x Digital zoom
Gamma Control: Yes
Iris Control: Auto / Manual
Digital Noise Reductions: 2D & 3D
On-Screen Display (OSD): English, Simplified Chinese, Traditional Chinese
White Balance: Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
AGC / Gain Control: Auto / Manual (0 to 28 step), Max. Gain Limit (6 to 28 step)
Mirror / Flip Image: Yes
Focus Mode: Auto / Manual
Focal Length: f=4.3 mm (WIDE) to 88.5 mm (TELE), F1.6 to F4.7
Field of View (Horizontal, Wide): Approx. 63.7° (WIDE END) / 2.3° (TELE END)
Image Compensation: Day & Night function
Video Output: 3G/HD-SDI x1
Audio Input: 3.5mm Jack (Stream Output Only)
Tally LED: Dual color (Red, Green)
Filter: M52.0 x 0.75 Thread with UV Protection
Protocol: VISCA, Pelco-D, Pelco-C
Remote Control Interface and Transmit Distance: RS-485: Transmit up to 1000m
Video Compression Format: H.265, H.264, MJEPG
Audio Compression Format: AAC
Network Protocol: TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc
F/W Update: Ethernet
Tripod Mount: 1/4-20 UNC
Options: PTR-10
Color: Dark blue
Dimension (LxWxH): 71 x 162 x 83mm
Weight: 0.7 kg
Operating Temp. Range: 0~40 °C
Power: DC 12V 6W
In the Box
1 x BC-50 main unit
1 x DC 12V power adaptor
