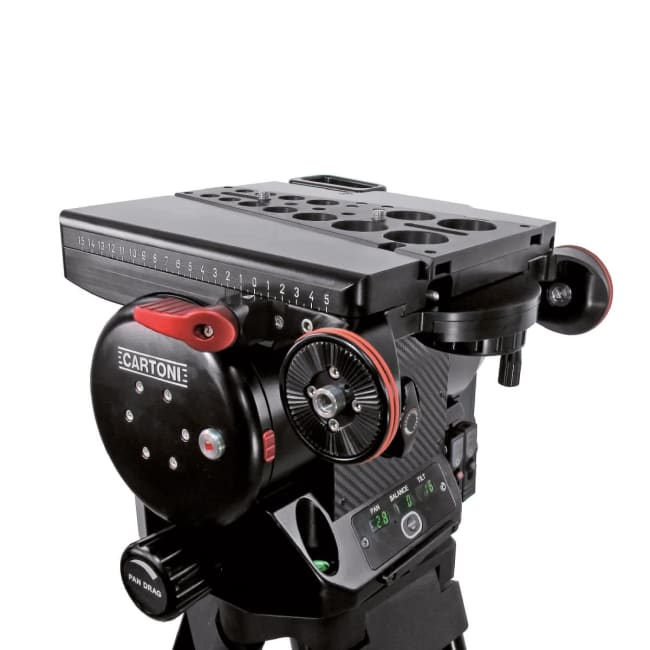

Cartoni H580 Magnum Fluid Head

Varenummer: 513025
Produktnummer: CAR-H580
EAN: 4260725670490
inkl. mva.

Stativhode med 95kg kapasitet for de største bokslinsene. Med "Dove Tail" kameraplate og Flat Mitchell base.

The Magnum Fluid Head is the flagship in the CARTONI range of camera supports.

Designed to support fully decked Studio and OB cameras equipped with long boxed lenses, studio viewfinder or large teleprompter, the Magnum is an extremely compact Fluid Head incorporating a patented counterbalance system as well as an advanced fluid damping module.

Manufactured with an extensive use of ultra-strong aluminum alloy, the Magnum provides for outstandingly precise movements and consistently high drag output. The counterbalance system is ideally suited to operate with Cameras featuring a high centre of gravity and weighing from 30 to 95 Kg (66,1 – 209,4 lbs). Cameras within this range can be perfectly balanced through the entire 130° tilt angle. Calibrated with a variable adjustment connected to a digital readout display, the counterbalance operating knob is conveniently located on the back of the head. The frictionless fluid damping modules feature a patented design and give an extraordinary performance over an extended temperature range.

The continuously variable fluid control knobs located on both sides of the head are easy to reach and are connected to a digital readout which allows the operator for quick set-ups even in low light conditions. The effective control brakes on both, pan and tilt mode are located on the right side of the control panel for an easy one-hand operation. Two threaded holes for the teleprompter tubes are located on the front of the sliding platform.

The Magnum interfaces directly with any Mitchell flat base Heavy Duty Tripod and can be easily mounted on top of all existing Pedestals featuring 4-hole bores. Optional 150mm bowl base adapter can be easily applied. Optional Pedestal adapter can be easily applied.

Technical Specifications

Weight: 19 kg
Minimum Payload Capacity: 30 kg
Maximum Payload Capacity: 95 kg
Bowl Diameter: Flat
Fluid Drag: Continuous
Counterbalance: Continuous
Pan Range: 360°
Tilt Range: +/-65°
Temperature Range: -40°/+60° Celsius
