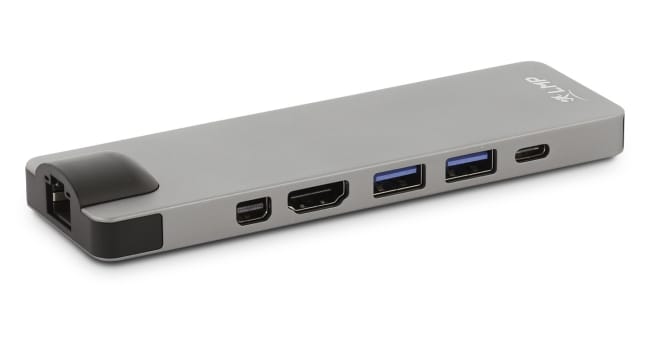

LMP-17113 Compact dock 2x USB-C til 2xUSB/Ethernet/HDMI/DP

Key features

• 4K@60 Hz via Mini-DP
• Dual 4K monitor support
• Ultra-compact design made for all MacBook Pro 13“ and 15“ with Thunderbolt 3/USB-C ports
• Gigabit Ethernet connection
• 2x USB 3.0 with 1x 1.5 A power output to charge iPad/iPhone
• USB-C port for power and data transfer
• Dual USB-C connection for full functionality
• Thunderbolt 3 compatible
• Made out of aluminum for best heat dissipation

4K resolution with 60 Hz refresh rate? Extend to two 4K displays from your MacBook Pro? Use fast Gigabit Ethernet? Charge your iPad while working? It's all combined in the sleak LMP USB-C Compact Dock with its 8 ports and massive bandwidth like no other dock in its class. Ideal for the integration in the most powerful 4K workflow at highest refresh rate (Mini-DP 4K@60 Hz and HDMI 4K@30 Hz)!

The LMP USB-C Compact Dock is the most powerful USB-C attachable docking station on the market with Thunderbolt-like features at an unbeatable cost-value ratio. It features dual USB-C connectors to the host to extend its bandwidth and versatility. The design in silver or space gray matches perfectly with the new MacBook Pro 13" or 15" (2016/2017/2018) and the aluminum surface dissipates the evolving heat. The rubber feet on the bottom side prevent the USB-C ports from strain. The Compact Dock is specifically made for the new generation of MacBook Pro 13" and 15" with two/four Thunderbolt 3 ports (compatible with Thunderbolt 3 ports).

While the Mini-DisplayPort can display video and audio content to an attached display with a stunning 4K@60 Hz, the HDMI port will do it with a maximum resolution of 4K@30 Hz. The video ports work independently and are capable of extending your laptop's content to two external displays, TVs or projectors at the maximum resolution.

The two USB 3.0 ports guarantee for fast data exchange (downward compatible to USB 2.0/1.1) while one of these ports features a power output of 1.5 A (with Power Delivery attached). Enough to charge your iPad or iPhone while working. Besides, the USB-C port not only handles the pass-through power (Power Delivery) to your host and attached peripherals but can be used for data transfer at a whopping 5 Gbps as well.

The Gigabit Ethernet port gives you fast access to a network and the internet. Along with the SD and microSD card reader, it makes the Compact Dock a versatile dock for just about any task!

Technical specifications

Connection type2x USB-C 3.1

Video ports 1x HDMI (up to 4K@30 Hz)1x Mini-DisplayPort (up to 4K@60 Hz)

Data ports 1x USB-A 3.0 (up to 5 Gbps, up to 1.5 A)1x USB-A 3.0 (up to 5 Gbps)1x USB-C 3.1 PD (up to 5 Gbps, up to 55 W)

Network ports 1x Gigabit Ethernet (10/100/1000 Mbps)

Card reader 1x microSD card reader1x SD card reader

Power supply Bus-powered

Features HDCP compatible

Color Space GraySilverGold

Material Aluminum

Product dimensions (W x H x D)13.5 x 1.5 x 4 cm

Product weight 73 gr

Package dimensions (W x H x D)19.5 x 11 x 2.5 cm

Package weight 107 gr

Package content LMP USB-C Compact Dock

Notes
Not compatible with Apple USB SuperDrive. May evolve heat when in use.Apple LED Cinema Display (24-inch & 27-inch) and Cinema Display (30-inch DVI Late 2005 - in combination with MB571) are supported.Apple Thunderbolt Display (27-inch) is not supported.The combination of MacBook Pro 16" (2019) with 30" Apple Cinema Display (with Apple Dual Link Adapter) does not work with this adapter/dock.The video ports do not support the use of a further AV adapter (i.e. Mini-DP to HDMI adapter).
