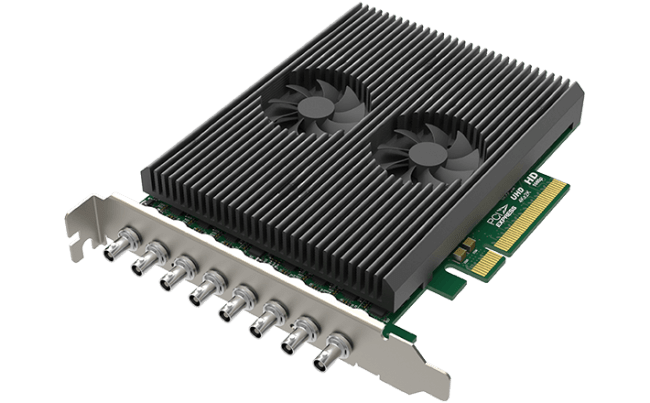

Magewell 11270 Pro Capture Dual SDI 4K Plus

Varenummer: 505914
Produktnummer: 11270
EAN: 6936572401027
inkl. mva.

Pro Capture Dual SDI 4K Plus Specifications

Supported OS

  • Windows

    • Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above

  • Linux (support x86, x64 & ARM architecture)

    • Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04/18.04 (x86 & x64)

    • CentOS 6.5/7 (x86 & x64)

    • Fedora 25/26/27 (x86 & x64)

    • Red hat 6.5 and above (x86 & x64)

    • Other Linux OS with kernel version 2.6.35 and above

  • Mac

    • OS X 10.9/10.10/10.11

    • macOS 10.12 and above/10.14

Recommended OS (tested)

  • Windows

    • Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)

  • Linux

    • Ubuntu 12.04/14.04/16.04 (x86 & x64)

    • Ubuntu 17.04/17.10/18.04 (x64)

    • CentOS 6.5/7.2 (x86 & x64)

    • Fedora 25/26 (x64)

    • Red hat 6.5 (x86 & x64)

  • Mac

    • OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4

    • macOS 10.12/10.13.2/10.13.3/10.14.3/10.15

Supported APIs

  • Windows

    • DirectShow

    • DirectKS

    • Wave API/DirectSound/WASAPI

  • Linux

    • V4L2

    • ALSA

  • macOS

    • AVCaptureSession

    • AudioUnit

Supported Software

  • Adobe Flash Media Encoder

  • Livestream

  • Microsoft Media Encoder

  • OBS

  • Skype

  • Vahana

  • VirtualDub

  • VidBlaster

  • Video Stitch

  • VLC

  • vMix

  • Wirecast

  • XSplit

  • Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software

Input Interfaces

  • HD-BNC x8

    • Four connectors are compatible with SD/HD/3G SDI

    • Two connecter is compatible with SD/HD/3G/6G SDI

    • Two connecter is compatible with SD/HD/3G/6G/12G SDI

    • Support for input of Single Link, Dual Link, Quad Link

Host Interfaces

  • PCIe Gen2 x8

Input Features

  • Support for input video resolutions up to 4096x2160 pixels

  • Auto detection of Single Link, Dual Link, Quad Link

SDI Specific Features

  • Integrated cable equalizer extending the cable length as follows:

    • up to 330m for SD-SDI signals

    • up to 190m for HD-SDI signals

    • up to 150m for 3G-SDI signals

    • up to 75m for 6G-SDI signals

    • up to 40m for 12G-SDI signals

  • Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS/6G/12G

  • Support for 2K (2048x1080) & 4K (4096x2160) mode

  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling

  • Support for 10/12-bit color depth

  • Support for extraction of SMPTE 352 payload identifier

  • Support for up to 8 (mono) audio channels at 48KHz

  • Support for extraction of audio formation information & channel status data

  • Support for Closed Caption via SDK

Video Capture Formats

  • Support for capture image resolutions up to 4096x2160 pixels

  • Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)

  • Support for 4:2:0 8-bit capture formats: NV12, I420, YV12

  • Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY

  • Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32

  • Support for 4:4:4 10-bit capture formats: V410, Y410

  • More capture formats are supported via Magewell Capture SDK

Video Processing Features

  • Two video processing pipelines with ~720 Mpixels/s processing bandwidth for each one

  • Full 10-bit video processing

  • Video cropping

  • Video scaling

  • Video de-interlacing

    • Weave

    • Blend top & bottom field

    • Top field only

    • Bottom field only

  • Video aspect ratio conversion

    • Auto or manual selection of input aspect ratio

    • Auto or manual selection of capture aspect ratio

    • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

  • Video color format conversion

    • Auto or manual selection of input color format & quantization range

    • Auto or manual selection of capture color format, quantization range & saturation range

    • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats

    • Support for Limited or Full quantization range

    • Support for Limited, Full & ‘Extended gamut’ saturation range

  • Video frame rate conversion

  • Video OSD composition

    • Support for PNG OSD image (up to 4096x2160)

    • Support for dynamic loading of RGBA OSD image via SDK

Multiple Cards per System

  • Support for multiple cards plugged to one system

  • On-board rotary switch to set card number, with 16 positions from 0 to F

  • System hardware device tree will display “01: Pro Capture Dual SDI 4K+” when rotary switch is set to 1, and so on

  • The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Multiple Capture Streams

  • Unlimited capture streams for any one input channel

  • Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, color adjustment and OSD settings for each individual stream

Ultra Low Latency Support

  • Latency of 64 video lines

  • Partial notification mode in SDK

Timestamp & A/V Synchronization

  • Hardware based 100ns high resolution clock

  • Audio frames (192 audio samples) & video frames are stamped with hardware clock

  • Hardware clock can be synchronized across cards (via SDK)

Video Capture SG-DMA

  • ~1600MB/s per channel DMA bandwidth in PCIe 2.x system

  • ~800MB/s per channel DMA bandwidth in PCIe 1.x system

  • Support for auto detection of Intel tiled GPU surface

  • Support for DirectGMA for AMD video adapter chipsets

  • Support for GPUDirect for Nvidia video adapter chipset

SDK

  • Magewell Capture SDK for easy integration, maximum flexibility and performance

Windows Driver Tweaks

  • All options can be controlled by three levels of registry key: global level, product level and device level

  • Video, Audio, Crossbar filter names can be customized via registry keys

Firmware Upgrade

  • Multiple cards in one system can be upgraded simultaneously

  • Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)

  • Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version.

LED Indicator

  • Status LEDs indicate the working state of each channel:

    • Pulsing slowly: idle

    • On: input signal locked

    • Off: input signal unlocked

    • Double blinks: memory failed or FPGA configuration failed

Form Factor

  • Low profile PCIe x8 Add-on Card

  • 127.89mm x 102.92mm (without PCI bracket)

Power Consumption

  • Max current at 12V:

    • 4 x 3G SDI: ~ 1.42 A

    • 2 x 6G SDI: ~ 1.41 A

    • 1 x 12G SDI: ~ 1.42 A

  • Max current at 3.3V:

    • 4 x 3G SDI: ~ 1.84 A

    • 2 x 6G SDI: ~ 1.73 A

    • 1 x 12G SDI: ~ 1.66 A

  • Max power consumption:

    • 4 x 3G SDI: ~ 23.05 W

    • 2 x 6G SDI: ~ 22.62 W

    • 1 x 12G SDI: ~ 22.52 W

Working Environment

  • Operating temperature: 0 to 40 deg C

  • Storage temperature: –20 to 70 deg C

  • Relative Humidity: 5% to 90% non-condensing
