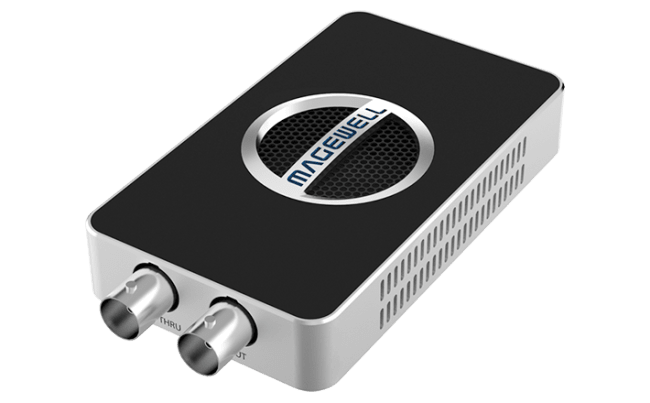

Magewell 32100 USB Capture SDI 4K Plus 6G-SDI til USB3.0

Varenummer: 505922
Produktnummer: 32100
EAN: 6936572400914
inkl. mva.

USB Capture SDI 4K Plus Specifications

Input Features

  • Max input & loop through video at 6G 4K (4096×2160 30fps 4:2:2 10-bit)

  • Input RGB/YUV 4:4:4 10/12-bit, YUV 4:2:2 8/10/12-bit, RGBA/YUVA 4:4:4:4 10-bit

  • Up to 8-channel embedded audio

  • Input analog audio via 3.5mm line in

  • SD/HD/3G/6G-SDI BNC input & loop through

  • SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G 4k(ST 2081) standard

  • Input SDI signals transmitted up to 75m for 6G-SDI signal

Process and Capture Features

  • Video processing pipelines with ~640Mpixels/s processing bandwidth

  • Capture videos up to 4096x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):

    • 4096x2160p/3840x2160p 23.98/24/25/29.97/30

    • 2560x1440p60

    • 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60/90

    • 720x576p25

    • 720x480p30

  • Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos

  • Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror

  • Output audio of SDI signal via 3.5 mm line out

  • Up to 2 audio channels at 48KHz

Included Software

  • USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting

SDK & APIs

  • The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc

  • Windows DirectShow/Wave API/DirectSound/WASAPI

  • Linux V4L2/ALSA

  • macOS AVCaptureSession/AudioUnit

Output Interface

  • USB 3.0

    • compatible with USB 2.0

    • compatible with USB 3.1 Gen 1

Compatible Software

  • Zoom Rooms

  • Microsoft Teams

  • Skype for Business

  • Google Hangouts

  • GoToMeeting

  • Gstreamer

  • VLC

  • OBS Studio

  • XSplit

  • QuickTime Player

  • Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

Recommended OS

  • Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above

  • Linux x86, x64 & ARM architecture, with 2.6.35 and above

  • Mac OS X 10.9/macOS 10.12 and above

  • Chrome OS

LED Indicator

  • Status LEDs indicate the working state of the device:

    • Pulsing slowly: input signal unlocked

    • On: input signal locked

    • Double blinks: memory abnormal or FPGA configuration failed

    • Off: firmware or power supply abnormal

Form Factor

  • 4.36 inch (L) x 2.24 inch (W) x 0.67 inch (H) (110.7mm x 56.8mm x 17mm)

Accessories

  • 1 × USB 3.0 cable

Power Consumption

  • 5V max current: ~0.86 A

  • max power consumption: ~ 4.3 W

Working Environment

  • Operating temperature: 0 to 45 deg C

  • Storage temperature: -20 to 70 deg C

  • Relative Humidity: 5% to 90% non-condensing

Capturekort
Grensesnitt mot PC/Mac USB-A
Egenskaper
Tilkobling 6G-SDI
Strøm USB
UNSPSC 43201531
