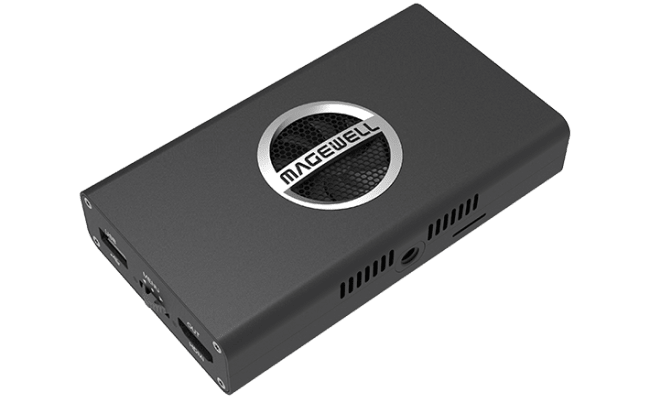

Magewell 64110 AIO Pro Convert NDI til HDMI 4K Decoder

Varenummer: 505930
Produktnummer: 64110 AIO
EAN: 6936572401294
inkl. mva.

Pro Convert for NDI to HDMI 4K Specifications

Output Features

  • Max output: 4096x2160 60fps 4:4:4 8-bit

  • Delivering video at the preferred video format according to the EDID of the connected monitor. Supported output formats include:

    • 4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60

    • 2560x1440p 60/100/120/144

    • 2560x1080p 23.98/24/25/29.97/30/50/59.94/60

    • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120

    • 1920x1080i 50/59.94/60

    • 1280x720p 23.98/24/25/29.97/30/50/59.94/60

    • 720x576p50

    • 720x576i50

    • 720x480p59.94/60

    • 720x480i59.94/60

  • Support 48KHz 8-channel audio output

  • HDMI interface: HDMI 1.4/2.0

Decoding Features

  • Decoding up to 4Kp60 streams of Full NDI, NDI|HX, NDI|HX2, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP protocols

  • H.264/H.265 video decoders

  • AAC/MP3 audio decoders

  • Support NDI 5.x

Configuration Management

  • Register with Magewell Cloud

  • Remote control via WebUI and Magewell Cloud

  • Provide comprehensive information regarding the device and decoded signals in real-time

  • Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, alpha blending, audio gain, sample rate, and channel mapping, as well as the network connection

  • Update firmware

  • Support USB RNDIS/ECM

  • Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers

  • Provide HTTP APIs

On-board Control Buttons

  • MENU: press to display the menu or select current parameter, or toggle the switch left and right to cycle through the options

  • 16 Position Rotary DIP Switch: set board-index from 0 to F

Network Interfaces

  • 10/100/1000Mbps Ethernet

  • IEEE 802.3af PoE

USB Interfaces

  • USB2.0 Type B

    • 5V/2.1A power supply


  • USB3.0 Type A

    • Connecting peripherals (keyboard and/or mouse) to customize the video and audio settings

LED Indicators

  • Power LED status indicator

    • On: power connected

    • Off: power unconnected

  • Decode LED status indicator

    • On: decoding

    • Blinks: decoding error

    • Off: source unselected

  • Tally: preview/program

Form Factor

  • 117.5mm (L) x 66.7mm (W) x 23.4mm (H)


  • USB 2.0 A to B cable

  • 5V/2.1A power adaptor

  • L-bracket

Screw Mounting Hole

  • ¼–20 threaded hole

Power Consumption

  • 5V max current: ~1.6A

  • Max power consumption: ~7.2W

Working Environment

  • Operating temperature: 0 to 45 deg C

  • Storage temperature: –20 to 70 deg C

  • Relative humidity: 5% to 90% non-condensing
