Multibrackets Veggfeste full motion dual max 45kg

Varenummer: 509443
Produktnummer: 7 350 073 735 266
EAN: 7350073735266
Multibrackets
inkl. mva.

M VESA Flexarm Full Motion Dual, 400x400 - Wall mount for LCD / LED panel - screen size: 40" - 70" - VESA: 100x100 to 400x400 - black
M VESA Flexarm Full Motion Dual ends an era of bulky and heavy arms needed to flex, tilt and turn. If your aim is to find a discreet partner for that new LED, LCD or plasma in a light weight, super strong solution not visible from any side yet giving you a maximum flexibility then the M VESA Flexarm Full Motion Dual is your choice.

The uniquely designed low profile M VESA Flexarm Full Motion Dual mount fits most 40” and up to 60” flat panels up to 45 kgs. It is very well-suited for those applications where seamless integration counts the most. The M VESA Flexarm Full Motion Dual is part of the Slim Series of fixed, tilt and cantilever mounts offering a slim design without compromising on functionality. Moreover, this wallmount has an extended profile of 488 mm from the wall.

The specifications this product reveals are simply incredible.

Super Slim defines the minimal 46 mm of the low profile to wall. It extends to a maximum of 488 mm proving that this construction is truly flexible being so lightweight. Yet still, produced with high quality materials creating a super strong solution carrying screen up to 45 kg.
Being both slim and flexible the built in functions of the wall mount allows you to optimize the screen for the perfect viewing angle. Wherever you are.

M VESA Flexarm Full Motion Dual is suitable for a wide range of screens sized 40” and up to 70”. The VESA standards that are supported by this mount is 100 / 200 / 300/ 400. This means that M VESA Flexarm Full Motion Dual is suitable for most of the VESA standards including the rare ones.

  • The dual flex arms nest for a super slim 46 mm mounting profile
  • Flex, tilt and turn for an optimal viewing angle at any time
  • Tilt easily to -2°~+10º to reduce glare
  • Turn effortlessly up to -45°~+45° depending on screen size to view from the right angle
  • Installation template and tool kit included for simple mounting
  • Built in bubble level for accurate mounting
  • One person tilt adjustment

    Horizonal distance in mm
    Vertical distance in mm
    VESA
    50
    75
    100
    200
    300
    400
    600
    50

    75

    100

    Yes
    Yes

    200

    Yes
    Yes
    Yes
    Yes

    300

    Yes
    Yes
    Yes

    400

    Yes
    Yes
    Yes

    600





SPECIFICATION
M VESA Flexarm Full Motion Dual, 400x400

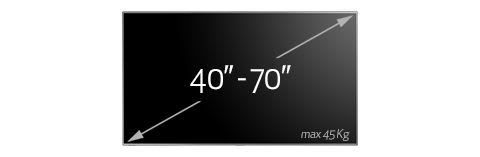

For screen size: 40-70"
Tilt: -2° ~ +10°
Turn: Up to -45° ~ +45°, screen size dependant
VESA standard: 100x100 200x100 200x200 300x300 300x200
400x200  400x300 400x400
Article No: 7 350 073 735 266
Size in mm: 595*294*46-488 (W*H*D)
Distance to wall: 46mm
Weight: 8 kg
Colour: Black
Max load: 45 kg
Distribution package: 2 pcs
Warranty: 5 years

Retail box size (WxDxH):

 600 x 430 x 650 mm
Units on a EUR-pallet: 64 pcs
Retail Package Specification
Package Parcels: 1 pcs
Package Measurements: 59 x 45 x 7 cm
Package Weight: 6.00 kg
Distribution Package Specification
Retail Package Parcels: 2 pcs
Package Measurements: 59 x 45 x 14 cm
Package Weight: 13.60 kg
Ekstern Info
ProdusentProduktManualProdukt ArkVideo
Teknisk info



Farge Svart
Maks VESA
  • 100x100
  • 200x100
  • 200x200
  • 400x200
  • 400x300
  • 400x400
Maks vekt 45 kg
Minste størrelse på skjerm 40 tommer
Største størrelse på skjerm 70 tommer
Vesamount 100x100, 200x200, 300x300, 400x200, 400x300, 400x400
Type Vegg
Egenskaper
Farge Sort
