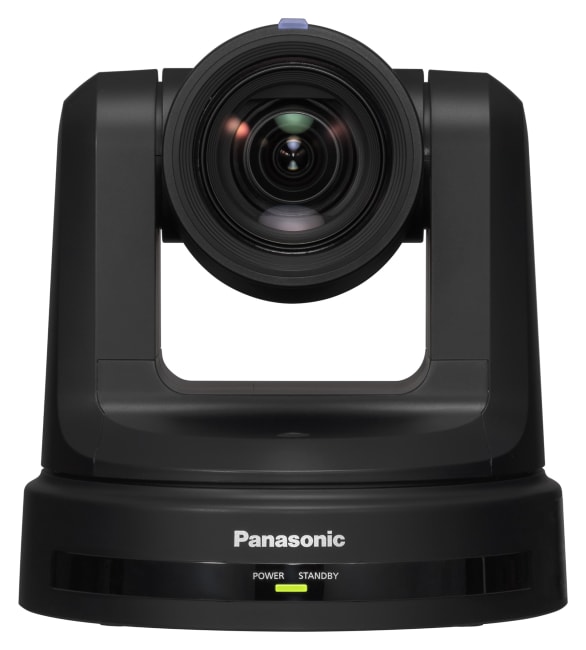

The AW-HE20 has a newly-designed and compact body, which makes it very easy to handle and to install in any kind of setting, especially when positioning the camera on trusses, ceilings or wall mounts for class rooms and meetings rooms.
The HE20 has been designed to support the following markets:
- Live streaming events
- Higher education
- Corporate installs
Single-cable solution
The HE20 also offers PoE+ support for camera power, control and video transmission over a single cable.
Online Video Content support
When using the PTZ Virtual USB driver software and using a LAN connection, it is possible to obtain video and audio from the HE20 in the same way you would an USB camera. This also ensures connectivity with video platforms including Panopto.
Upgraded sensor for HD Production
The HE20 features a 1/2.8-type MOS sensor that produces stunning Full-HD video. The HE20 supports 3G SDI, HDMI and IP which makes it an ideal option for using within existing workflows thanks to its simultaneous video output feature.
Wide-Angle Lens
The AW-HE20 introduces a new wide-angle lens with a 71° field of view and a 12x optical zoom, enabling a wide area to be shot from a limited installation space. This allows shooting in meeting rooms and huddle spaces.
Conventional HD Outputs
The AW-HE20 supports up to HD 50/60p video at 1920 x 1080 to provide professional and high-quality shooting of moving images, as well as a wide variety of output interfaces such as 3G-SDI, HDMI, and IP – which can be activated simultaneously for HD workflows.
IP Protocol Support
RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera directly.
Simplified Workflows
Panasonic offers an entire ecosystem of solutions to enable the new PTZ cameras to be smoothly introduced into existing camera systems. This includes use with its remote camera controllers, PTZ Control Center centralised control software as well as other Panasonic software.
Videokamera | |
---|---|
Sensor størrelse | 1/2.8 |
Oppløsning sensor | HD |
Optikk vidvinkel i mm | 3.9 |
Optikk Wide Horisontal åpningsvinkel | 71.0 grader |
Optikk Tele i mm | 46.8 |
Optikk Tele Horisontal åpningsvinkel | 6.0 grader |
Zoom x | 12.0 |
Objektivtype | All-round |
Egenskaper | |
---|---|
Tilkobling | SDI, HD-SDI, 3G-SDI, HDMI |
Strøm | 12V |
Farge | Svart |
UNSPSC | 45121516 |
