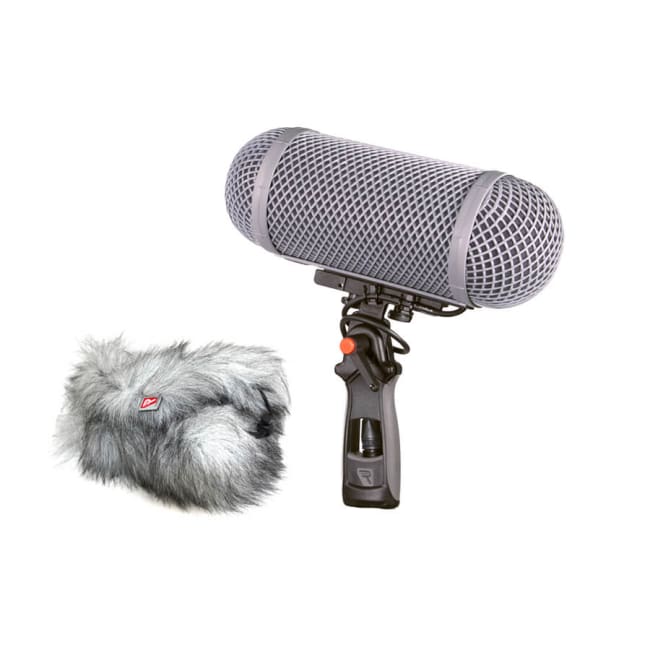

Modular Windshield WS 1 Kit
• Flexible, complete windshield and suspension package, which provides varying levels of windshielding for numerous microphone configurations
• The iconic Windshield Kit is the industry standard, and leads the way in windshielding and suspension technology
The Modular Windshield WS 1 Kit is suitable for small diaphragm condenser microphones up to 120mm in length with a 19-25mm diameter and a 3-pin XLR connector.
The Modular Windshield Kit is the professionals' choice when maximum isolation from wind and handling noise is required.
This complete modular system can be configured to allow almost any microphone to be shock-mounted and provided with varying degrees of windshielding. Components may be ordered separately, or as one of a series of kits, which simplify the selection process for many common configurations.A Modular Windshield Kit is comprised of the following three main components: Modular Suspension, Modular Windshield and Windjammer.
Finding the correct Windshield Kit will depend on the type, length and diameter of the microphone.
1 x Connbox CB1 (XLR-3F) 016901
1 x XLR Holder MK II 048493
1 x Boom Poles Adaptor 048402
1 x Pistol Grip Handle with Lever 048401
1 x Windjammer WJ 1 021501
1 x Windshield WS 1 010601
1 x Suspension Small (XLR-3F) 040140
Windshield Body Length: 170 mm
Total Windshield Length: 280 mm (includes the End Caps)
Height of Windshield: 100mm
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey
Microphone Connector: XLR-3F
Max Wind-noise Attenuation: 50 dB
