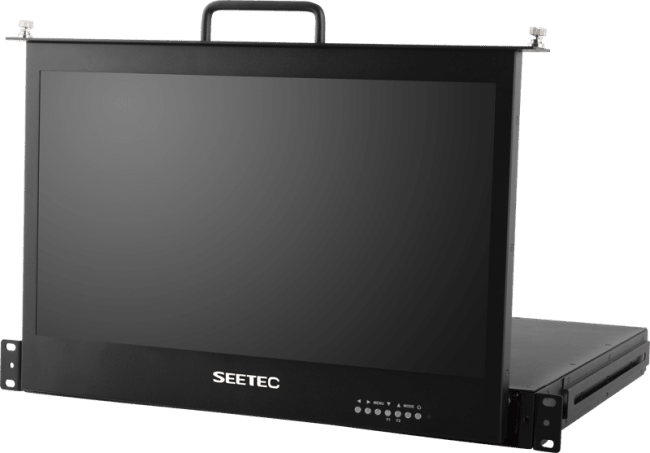

Seetec SC173-HD-56 SDI, 17,3" pull-out 1U rackmonitor HDMI SDI HD

Varenummer: 511451
Produktnummer: SC173-HD-56 SDI
EAN: 6971863813851
inkl. mva.

Plassbesparende monitor som bare trenger 1U (4,43 cm) plass i racket. Kan også brukes som bærbar monitor.

17.3" 1RU Pull-out Rack Mount Monitor.
Broadcast monitoring for live production, broadcast and post production.
The perfect rack mount monitoring solution for broadcasters.

The metal housing SC173-HD-56 boasts a crisp 17.3" IPS display panel with 1920x1080 resolution.
It has a host of inputs including 3G-SDI BNC, HDMI, DVI, VGA, YPbPr, Video, and Audio making it a perfect fit for any broadcast or live event production.
For added stow-and-go convenience, the SC173-HD-56 is designed with 1RU rack drawer design for rack mounting or as a stand alone unit. It an be folded down and slid into rack drawer to save space or to transport.
It has multiple functions to help monitoring, including focus assist, image zoom, center marker, screen marker, image freeze, check field etc.
This innovative drawer monitor is a cost-effective "all-in-one" solution for broadcast, post production, on set monitoring, broadcast trucks and more!

Product Features:

  • Full HD 1920x1080 Resolution
  • 1RU pull-out rackmount Design
  • Rack-Mountable or Stand Alone
  • Space Saving & Portable with Handle
  • 2 Adjustable Function Buttons
  • Metal Housing Protection
  • Advanced Monitoring Tools

Advanced Monitoring Tools
It has multiple functions to help monitoring, including focus assist, image zoom, image freeze, check field, center marker, screen marker, image flip, color temperature adjust etc.
These assist users to accurately monitor when shooting, making and playing movies/ videos.

See Everything in Stunning Detail
The SC173-HD-56 has a full HD 1920 x 1080 native resolution panel at 17.3".
The IPS screen panel gives crisp pictures and sharp color contrast, resulting in the high fidelity picture quality for both text and video alike.
Combine that with its 178 degrees (horizontal and vertical) wide viewing angle, and you'll see the same high-quality image from nearly any viewing position, whether you're leaning back in your chair or you're shifting from one side to the other.

Easy Connectivity with Your Equipment
SC173-HD-56 features a machined metal design that’s durable and extremely strong!
From its machined metal front to its professional broadcast connections, the SC173-HD-56 has been designed to handle the stress of professional broadcast, television, film and commercial production on the road or in your studio! Includes SDI input/output, default configuration HDMI, DVI, VGA, YPbPr, Video, Audio input, and you can also monitor audio using the 3.5mm stereo headphone jack. For power, there’s a 12V DC input.

Innovative Design Saves Precious Rack Space
If the rack space is tight, the SC173-HD-56 is designed with you in mind. Metal housing with pull-out drawer type design, which occupies just 1 RU (rack unit) of space when it's housed, and provides perfect protection for a 17.3 inch monitor from shock and drop.
A 1RU rack design not only can save the space of rack greatly with a 17.3-inch monitor, but also viewed from different angles when monitoring. Easily pull it out when you need it, fold it up and store it after use. It's the ideal studio monitor for applications where space is constrained.

Tekniske spesifikasjoner
Skjermstørrelse: 17,3"
Touch Screen: Nei
Innganger:  3G-SDI, HDMI, VGA, DV-I, YPbPr, Audio
Utgang: SDI loop out
Oppløsning:  1920 x 1080
Lysstyrke: 300 Cd
Kontrastforhold: 700:1
Fargedybde: 16,7M
Driftsspenning: 7-24 V DC
Strømforbruk: ≤10W
Mål: 485Lx462Hx43.5D (mm)
Vekt: 7,7 Kg

Bruksområde Rack
Skjerm-oppløsning 1080p
Skjermtype IPS
Størrelse 17.3 tommer
Tilkobling HD-SDI, 3G-SDI, Komponent, HDMI
Strøm 12V
Farge Svart
