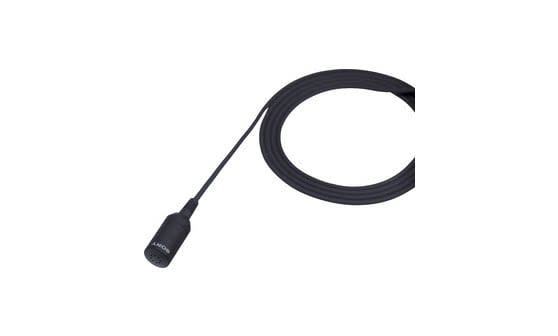

The Sony ECM-55B is an omnidirectional lavalier microphone designed for broadcast, sound reinforcement, and recording applications. The condenser element features a compact profile allowing it to be easily concealed in performance and broadcast situations. The omnidirectional polar pattern provides even frequency and sensitivity response at the direct and off-axis sections of the microphone capsule.
The ECM-55B provides a wide frequency response of 30 Hz to 18 kHz for accurate reproduction of audio signal from a variety of sources. The attached 9.8' cable features a power unit with an XLR 3-pin output. It may be operated via the internal battery or 12 to 48 VDC phantom power. The ECM-55B includes tie clips, a metal mesh windscreen, and a microphone case.
Specifications:
Transducer Electret Condenser
Polar Pattern Omnidirectional
Frequency Response 30 Hz to 18 kHz
Dynamic Range (Typical) ≥ 98 dB
Signal-to-Noise Ratio ≥ 66 dBA at 1 kHz, 1 Pa
Maximum Input Sound Level 126 dB SPL at 1 kHz
Output Impedance 100 Ohms (± 20%, 1 kHz Balanced)
Output Connector XLR 3-Pin Male
Cable Length 9.8' / 3 m
Pad None
Low Frequency Roll-Off None
Battery Life Up to 6000 Hours
Power Requirements 1.5 VDC AA Battery or 12 to 48 VDC Phantom Power
Power Consumption Internal Battery: ≤ 0.3 mA
External Battery: ≤ 2 mA
Dimensions (Diam. x L) Microphone Head: 0.4 x 0.8" / 10.6 x 21.0 mm
Power Supply: 0.8 x 5.2" / 20 x 133 mm
Weight 4.5 oz / 126.5 g with Power Supply Unit
