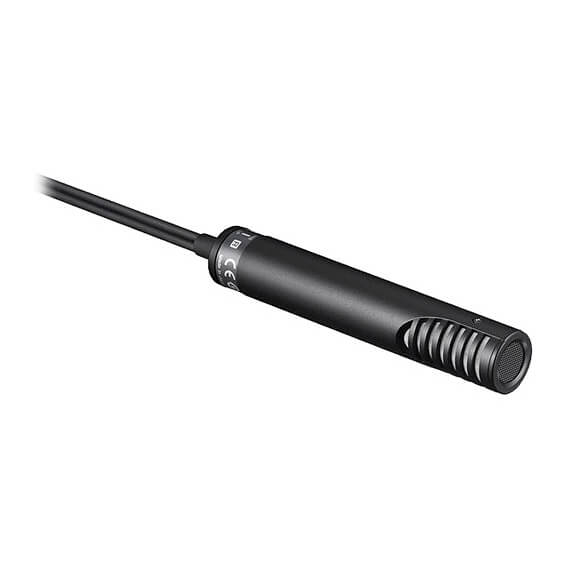

Sony ECM-MS2 stereo/mono shotgun microphone

Varenummer: 503725
Produktnummer: ECM-MS2
EAN: 4905524846119
inkl. mva.

SONY ECM-MS2 Stereo Electret Condenser Microphone

  • Short and Compact

  • Stereo and Mono Operation

  • 80 Hz to 20 kHz Frequency Response

  • 48V Phantom Power

  • 3-Pin XLR Output

  • Includes Furry Windscreen

The Sony ECM-MS2 Stereo Electret Condenser Microphone is designed for mounting on professional camcorders equipped with 2 XLR inputs and phantom powering. The microphone also delivers good sound performance in field and studio-production applications. The MS microphone signal of the ECM-MS2 microphone is internally decoded, and provides L and R (stereo) outputs. The MS2 stereo microphone also supports mono operation by simply unplugging the right channel (disabling phantom power from the right channel XLR connector).

Frequency Response:    Stereo: 80 Hz to 20 kHz Mono: 70 Hz to 20 kHz
Directivity:    Unidirectional
Output Impedance:    30 Ohms ±20%, balanced
Sensitivity:    Stereo: -32 dB (deviation ±3 dB)
Signal-to-Noise Ratio:    69 dB or more (IEC 179 A-weighted, 1 kHz, 1 Pa)
Noise:    Inherent: 25 dB SPL or less
Wind: 45 dB SPL or less (with windscreen)
65 dB SPL or less (without windscreen)
Induction: 0 dB SPL/1 x 10-7 T (1 mG) or less (from external magnetic field)
Maximum Sound Pressure Level (SPL):    125 dB SPL or more (input level for 1% waveform distortion at 1 kHz, converted into equivalent input sound pressure level)
Dynamic Range:    100 dB SPL or more
Operating Temperature:    32 to 122°F (0 to 50°C)
Storage Temperature.    -4 to 140°F (-20 to 60°C)
Type:    Back electret condenser microphone Stereo: MS (Mid-Side) stereo microphone
Power Supply:    External power supply of 40 to 52 VDC (IEC 61938 P48)
Power Consumption:    Stereo: 3 mA or less x 2 Channel
Output Connector:    2x Cannon XLR-3-12C type
Dimensions:    0.96 x 5.5" (24 x 137 mm)
Weight:    Approximately 5.6 oz (160 g)
