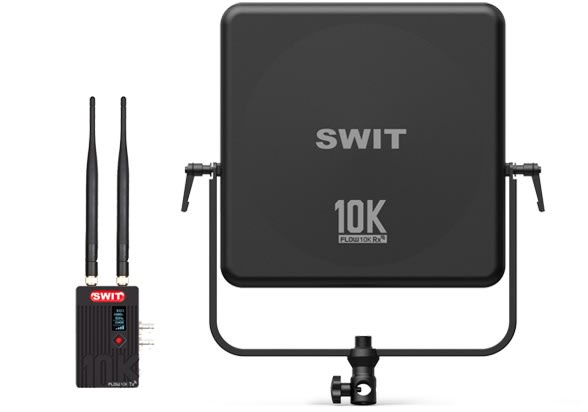

SWIT FLOW10K, Trådløs videolink 3 Km, 3GSDI inn/ut

Varenummer:
500070
Produktnummer:
FLOW10K

inkl. mva.

Trådløs SDI videolink med panelmottaker, FLOW10Ker et trådløst sender/mottaker sett for HDSDI video med embedded audio.

For høyest mulig signalkvalitet og minst mulig signalforsinkelse sendes signalene ukomprimert. Settet benytter lisensfrie frekvenser fra 5,1 til 5,9 GHz. Et OLED display gir informasjon om kanalvalg og signalstyrke.

Spesifikasjoner:

  • KUWI 5.1-5.9GHz Wireless Technology DFS Comply 3GSDI & HDMI, med 3GSDI loop ut
  • Panelmottaker med høyforsterknings antenne 3km (fri sikt) distanse
  • Trenger godt gjennom vegger
  • 2-kanals SDI/HDMI lyd
  • OLED skjerm gir info kanal bytte
  • inntil 22 par kan være p åsamme lokasjon
  • Multicast - 1 sender til inntil 4 mottagere
  • Dobbeltkryptert - både trådløs og innhold
  • Reclock og nøyaktig fargereproduksjon
  • NP-F DV plate for Tx(sender), V-mount for Rx(mottager)

KUWI Wireless Technology

SDI&HDMI 10000ft / 3km long distance

FLOW10K wireless system is based on SWIT latest professional KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, sup- ports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 10000ft / 3km Line-of-Sight distance. The KUWI professional wireless chip features stable connection at any complex environment and stronger in wall-cross capability.
The long distance wireless can be widely used in film production, event broadcasting etc.



The Transmitter

The Transmitter has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 input

SDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50

* Supports embedded audio (CH1&2) transmission.

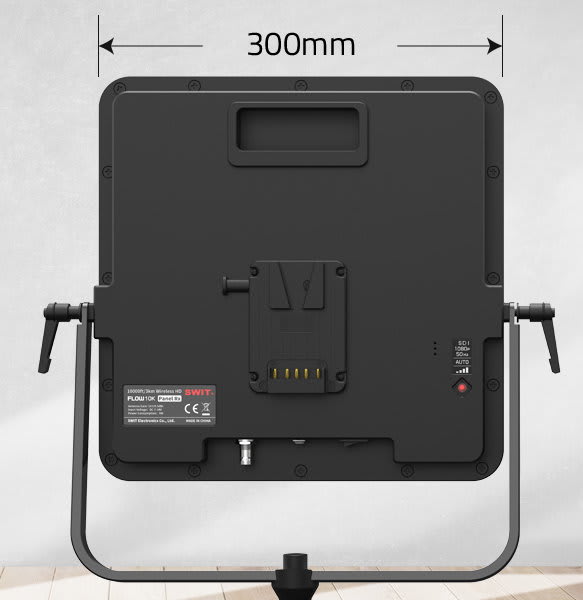

The Panel Receiver

The Receiver has built into high gain directional Panel Antenna, compact size, without complex antanna wires connection, solid and reliable, and provides 1x 3G/HD-SDI output.



10000ft/3km Long Distance

Strong Wall-cross Performance

With the high gain panel receiver, FLOW10K supports 10000ft/3km (Line-of-sight) reliable wireless transmission, and featured stron- ger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.

Power Supply

The power consumtion of Tx and Rx are less than 9W. The Transmitter provides NP-F DV battery plate, and 7-34V DC-IN socket;
The Panel Receiver provide V-mount battery plate, and 7-34V DC-IN socket.





Multicast and Double Encryption

Support 1 transmitter to unlimited quantity receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages.



Stable Connection at Worst Wireless Environment

The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.



Stable Connection at Worst Wireless Environment

The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.
