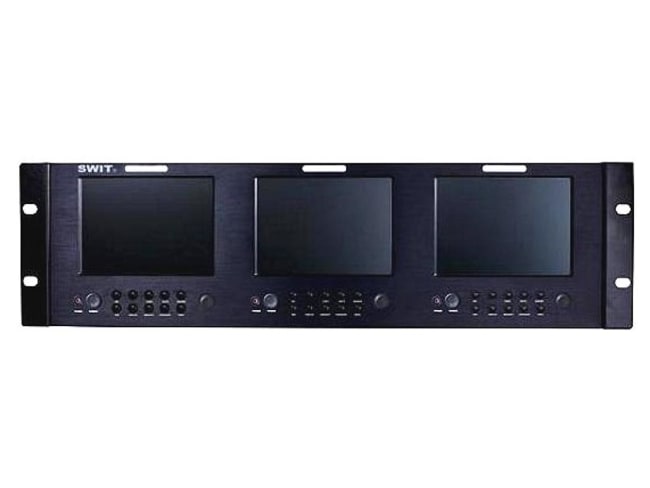

SWIT M-1048H 4,8" Monitor

M-1048H is a 19-inch 3RU standard rack mounting LCD monitor, with 3 high resolution 4.8-inch LCD panels of independent input controlling.

Each LCD accepts 1 Composite video input with loop through, 1 SDI/HDSDI video input with loop through and 1 Stereo audio input. It also has stereo audio level display, safety mark display, 3-color TALLY light and 3 user defined picture settings. M-1048H has a 4-pin XLR 12V DC power connector for all 3 LCD panels.

Videoinnganger: 3 x Composite og 3 x SDI/HDSDI, alle med BNC og loop through
Audioinnganger: RCA L/R
Oppløsning: 800×RGB×480
Aspect ratio: 16:9 (4:3 valgbart)
Betraktningsvinkel: H/V: 130/110
Lysstyrke: 350cd/m2
Kontrast: 300:1
Driftsspenning: 12V DC,
leveres med 230V AC/adapter
Strømforbruk maks 30W (til sammen for alle 3 skjermene)

Dimensjoner: 485×132×77 mm, 19-inch / 3RU
Vekt: 2800g
