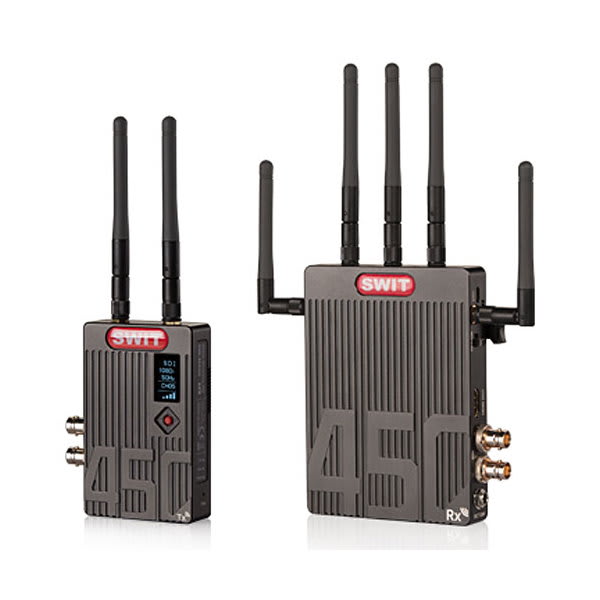

Swit SW-M450US Trådløs videolink 450m, 3GSDI og HDMI inn/ut

Varenummer:
500568
Produktnummer:
SW-M450US

inkl. mva.

SW-M450US er et trådløst sender/mottaker sett for HDMI og HDSDI video med embedded audio.

For høyest mulig signalkvalitet og minst mulig signalforsinkelse sendes signalene ukomprimert.
Settet benytter lisensfrie frekvenser fra 5,1 til 5,9 GHz. Et OLED display gir informasjon om kanalvalg og signalstyrke.
Begge enhetene er utstyrt med 1/4" gjenge, slik at senderen kan monteres på kameraet, og mottakeren for eksempel kan plasseres på et stativ, når det er mest hensiktsmessig.

Spesifikasjoner:

Video inngang på sender: HDMI og HDSDI (HDSDI har prioritet dersom begge signalene kobles til samtidig)
Video utgang på mottaker: HDMI og HDSDI (samtidig)
Audio: 2 kanaler embedded audio
Radiofrekvens: 5,1 til 5,9 GHz Autovalg

Transmisjonsteknologi: WHDI (OFDM) 16QAM AES 128 bit kryptering
Multicast: Èn sender kan sende til flere mottakere (maks 4)
Rekkevidde: Inntil 450 meter (fri sikt)
Sendereffekt: Maksimum 63 mW
Latency: Mindre enn 1 ms
Festemuligheter: 1/4" gjenge.
Strømforsyning: Ekstern 6,5-17 VDC strømforsyning eller batteri.
Strømforbruk sender: Mindre enn 6 W.
Strømforbruk mottaker: Mindre enn 7 W.

Dette inngår i leveransen (tentativt):
1 stk SW-M450T sender med Sony EX-serie (BP-U)
batterifeste
1 stk SW-M450R mottaker med med V-Mount batterifeste
1 stk S-7365K, 3-leddet "Magic Arm" kamerafeste med 1/4" skruer og fot for tilbehørssko
1 stc S-7355K, Crab Clamp miniklemme
1 stk 100-240V AC-adapter 12V 1A
1 stk S-7114, DC-kabel med D-Tap
7 stk Antenner
1 stk Brukermanual
2 års Garanti mot fabrikasjonsfeil



SDI & HDMI 450 meter Wireless Video Transmitter System.

For Sony BP-U60/U30, SWIT S-8U65 and S-8U95 Batteries.

Key features:

  • WHDI 5.1-5.9 GHz license-free wireless
  • DFS Comply
  • Uncompressed 3GSDI & HDMI transmission
  • 450 meters (Line-of-Sight) distance
  • Less than 1 millisecond latency
  • 2-ch HDMI embedded audio transmission
  • Timecode and trigger transmission
  • OLED info and channel switching
  • Instant Playback mode for Alexa Mini
  • Chip Level Transmission Encryption
  • Unique accurate color reproduction algorithm
  • Support 3-4 pairs working in one location
  • Multicast - 1 transmitter to Max 4 receivers

WHDI Wireless Technology with SDI & HDMI 450 meters (LOS)

SW-M450 wireless system is based on WHDI wireless technology, 5.1-5.9 GHz license free bands, DFS comply, supports uncompressed 3G/HD-SDI and HDMI (Max 1080p60) to transmit 450 meters (Line-of-Sight) distance, and less than 1 millisecond latency.

The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

The Transmitter (Tx) has 2 omni antennas, supports:

1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 input

The Receiver (Rx) has 5 omni antennas, supports:

2x 3G/HD-SDI output
1x HDMI 1.3 output

450 meters Transmission, Non-compressed, ≤1ms latency

In Line-of-Sight, SW-M450 supports non-compressed 3G/HD-SDI and HDMI 450 meters (1500 feet) transmission, with less than 1 millisecond latency.

SW-M450 supports SDI & HDMI embedded audio (CH1&2) transmission, and supports SDI Timecode & Trigger transmission.



OLED Display & Channel Switch and DFS comply

Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength.

On the Tx, push the joystick up/down to switch wireless channels from CH0 to CH10, and indicates the signal bars.

When changing to a new channel, the paired Rx will follow the new channel automatically.

On the Rx, push the joystick right to enter wireless condition analysis, and after 10 seconds, the OLED will display the signal strength of all 11 wireless channels, and helps to select a best channel to work.

Support 3-4 pairs wireless channels to work together in one location.

Chip Level Encryption

The Transmitter and Receiver need to pair and work encrypted. Supports Max 1 to 4 multicast.

Any unpaired receivers can’t been connected with theTransmitter, in order to protect the camera footages.



Accurate Color Reproduction

Due to the wireless chip limitation, the normal wireless systems cannot truely reproduce colors.

SW-M series made particular algorithm modifications, to ensure a broadcast level accurate color reproduction.

SW-M450 standard package includes:

1x Transmitter
1x Receiver
1x Articulating arm trestle (Cold shoe and 1/4”)
1x D-tap to pole-tap DC cable
1x AC-DC power adaptor
1x Carrying case (for everything)
