Total Video Inputs
4

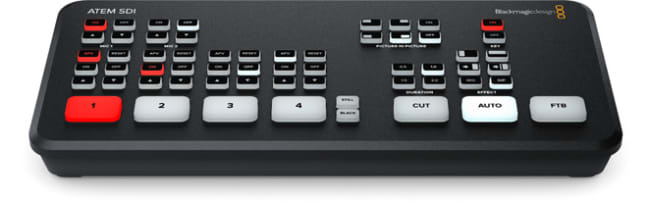

Blackmagic ATEM SDI
Varenummer: 511557
Produktnummer: SWATEMMXEP
EAN: 9338716007930
inkl. mva.
ATEM SDI is fast to set up and easy to use. It includes 4 standards converted SDI inputs, USB webcam, 2 SDI outputs, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.
Connections
Total Outputs
3
Total Aux Outputs
2
Total Audio Inputs
2 x 3.5mm stereo mini jack.
Total Audio Outputs
None, embedded audio only.
Timecode Connection
None
SDI Video Inputs
4 x 3G-SDI, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync
On all 4 SDI inputs.
Frame Rate and Format Converters
On all 4 SDI inputs.
SDI Program Outputs
2
Ethernet
Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection.
Computer Interface
1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection.
| Mikser | |
|---|---|
| Antall utganger UVC | 1 |
| Antall innganger Analog lyd | 2 |
| Antall innganger SDI | 4 |
| Antall utganger SDI | 2 |
| Capturekort | |
|---|---|
| Grensesnitt mot PC/Mac | USB-C |
| Egenskaper | |
|---|---|
| Tilkobling | HD-SDI, 3G-SDI |
| Strøm | 12V |
| Farge | Svart |
| UNSPSC | 45111819 |
| Produktets vekt | 680.0 g |
| Lengde | 23.75 cm |
| Bredde | 11.88 cm |
| Høyde | 3.5 cm |
