Total Video Inputs
4

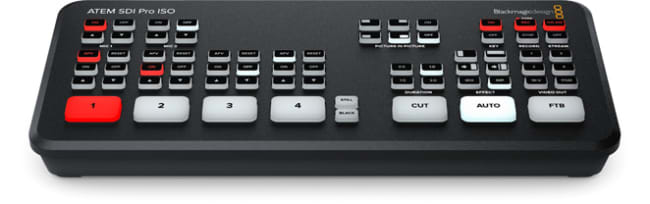

Blackmagic ATEM SDI Pro ISO
Varenummer: 511558
Produktnummer: SWATEMMXEPBPRISO
EAN: 9338716007954
inkl. mva.
This model includes the features of ATEM SDI plus it adds built in streaming and recording to 5 video streams in real time! That's a clean feed of all inputs for multi‑cam editing! A DaVinci Resolve project is saved so you can open your live production to edit, remix audio and add color correction!
Connections
Total Outputs
3
Total Aux Outputs
2
Total Audio Inputs
2 x 3.5mm stereo mini jack.
Total Audio Outputs
None, embedded audio only.
Timecode Connection
None
SDI Video Inputs
4 x 3G-SDI, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync
On all 4 SDI inputs.
Frame Rate and Format Converters
On all 4 SDI inputs.
SDI Program Outputs
2
Ethernet
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer Interface
1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
| Mikser | |
|---|---|
| Antall utganger IP | 1 |
| Antall multiview utganger | 1 |
| Antall utganger UVC | 1 |
| Antall innganger Analog lyd | 2 |
| Antall innganger SDI | 4 |
| Antall utganger SDI | 2 |
| Capturekort | |
|---|---|
| Grensesnitt mot PC/Mac | USB-C |
| Egenskaper | |
|---|---|
| Tilkobling | SDI, USB-C |
| Strøm | AC100V-240V 50/60Hz |
| Farge | Svart |
| UNSPSC | 45111819 |
| Produktets vekt | 680.0 g |
| Lengde | 23.75 cm |
| Bredde | 11.88 cm |
| Høyde | 3.5 cm |
