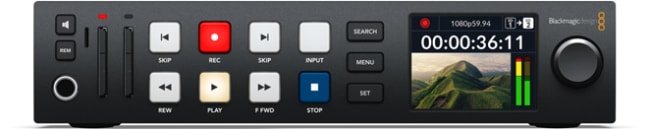

Blackmagic HyperDeck Studio HD Plus

Varenummer: 504847
Produktnummer: HYPERD/ST/DCHP
EAN: 9338716007121
inkl. mva.

Videoopptager/avspiller med støtte for inntil UHD 30fps og HDR

HyperDeck Studio HD Plus includes all the features of the Mini model, but is larger so it has more space for extra controls and extra connections. This model adds 6G-SDI so it can record and playback ProRes up to Ultra HD 30fps, and it includes an SDI loop out and HDR support. Plus the two 6G-SDI outputs allow fill and key playback up to 1080p60. There is also an HDMI input and a dedicated 3G-SDI monitoring output with overlays. Any button pushed on the front panel is sent to a dedicated RS-422 remote output and the DC power is now a broadcast style XLR connector. The front panel is also upgraded with better transport control buttons, a headphone socket and built in speaker.



Connections

SDI Video Inputs

1

SDI Video Outputs

2

SDI Monitor Outputs

1

SDI Rates

270Mb, 1.5G, 3G, 6G.

HDMI 2.0 Video Inputs

1

HDMI 2.0 Video Outputs

1

Built in Speaker

Mono

Audio Output

1 x 6.35 mm headphone jack.

Screen

2.2 inch LCD.

Timecode Connections

1 x BNC In, 1 x BNC Out.

Reference Connections

1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.

SDI Audio Inputs

16 channels embedded audio.

SDI Audio Outputs

16 channels embedded audio.

HDMI Audio Inputs

8 channels embedded audio.

HDMI Audio Outputs

8 channels embedded audio.

Remote Control

1 x RS-422 In, 1 x RS-422 Out.

Recorder Configuration

Via user interface orBlackmagic HyperDeck Ethernet Protocol.

Ethernet

1Gb/s

Computer Interface

1 x USB Type-C 3.0 (up to 5Gb/s) forexternal drive recording, webcam out,software configuration and updates.

Egenskaper
Tilkobling HD-SDI, 3G-SDI, 6G-SDI, HDMI
UNSPSC 43201531
