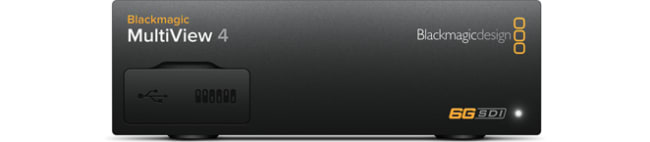

Blackmagic MultiView 4

Varenummer:
504513
Produktnummer:
HDL-MULTIP6G/04

inkl. mva.

Blackmagic MultiView 4 is a multi viewer that lets you monitor 4 completely independent SDI video sources on a single display! Featuring 4 6G-SDI inputs with full re-synchronization, MultiView 4 lets you monitor any combination of SD, HD and Ultra HD video formats and frame rates all at the same time. Blackmagic MultiView 4 can output to both 1080 HD and 2160p Ultra HD displays so you connect it to either regular HD or Ultra HD televisions. If you connect an Ultra HD television or monitor, you can take advantage of the extra resolution of Ultra HD and see full resolution 1920 x 1080 HD in each view for incredible sharpness! You can even turn on audio meter overlays, custom labels and more in each view!



Connections

SDI Video Inputs

4 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.

SDI Video Outputs

4 loop, 1 HD/Ultra HD.

SDI Rates

270Mb, 1.5G, 3G, 6G.

SDI Video Multi View Outputs

1 x 10-bit HD-SDI and 10 bit 6G‑SDI

HDMI Video Multi View Outputs

1 x HDMI type A connector. Output supports EDID of the monitor.

SDI Reclocking

On all SDI outputs, auto switching between standard definition, high definition or 6G‑SDI video.

Reference Input

None

Multi Rate Support

Auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video.

Updates

USB 2.0 high speed (480Mb/s) interface or via Ethernet.

Configuration

RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
