SDI Video Inputs
1 x 12G-SDI SD/HD/2K/4K auto switching.
Embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection. Take audio from devices such as audio mixers, iPods and analog decks and embed it into SDI video connections for use with SDI routers and decks.
1 x 12G-SDI SD/HD/2K/4K auto switching.
1 x 12G-SDI output.
2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input.
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
16 channels.
S/PDIF Signal with TOSLINK Connector.
Automatic switching between SD/HD/2K and 4K.
USB or Ethernet.
Yes
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
SDI video connections are auto switching between standard definition SDI, 1.5G‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI.
4:2:2, 4:4:4
Television standard sample rate of 48 kHz and 24-bit.
Automatically selects between SD, HD, 3G, 6G and 12G‑SDI.
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
REC 601, REC 709
Mac™ and Windows™ software upgrade via USB and Ethernet.
Via included updater application.
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Mini Switches, USB and Ethernet via free software utility
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Can be powered via 48V DC using PoE+ (power over ethernet).
16 Watts
100 - 240V AC
0° to 40°C (32° to 104°F)
-20° to 60°C (-4° to 140°F)
0% to 90% non-condensing

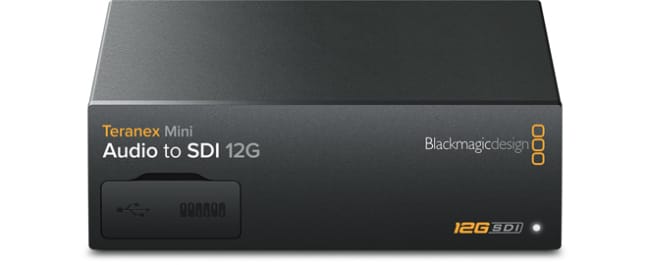

Teranex Mini Audio to SDI 12G
Welcome wallet with QR code for software download
3 year Limited Manufacturer’s Warranty.
