SDI Video Inputs
2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.

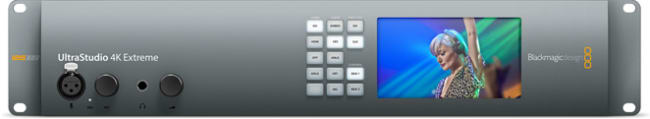

Blackmagic UltraStudio 4K Extreme 3 Capturekort - avspillerkort
Varenummer: 502165
Produktnummer: BDLKULSR4KEXTR/3
EAN: 9338716003857
inkl. mva.
Capture/avspiller-kortet med alle inn/utganger du kan ønske deg
UltraStudio 4K Extreme 3 is the world’s most advanced capture and playback solution for PCI Express and Thunderbolt computers! It features incredibly fast 40Gb/s Thunderbolt 3, advanced 12G‑SDI and HDMI 2.0 connections for working at up to 60 frames per second with deep color, 12‑bit RGB, support for HDR workflows via HDMI 2.0a and extremely large 4K frame sizes. Featuring the widest range of analog and digital connections, UltraStudio 4K Extreme 3 is compatible with virtually any camera, deck, router or display. There’s even an extremely powerful hardware encoder built-in that supports realtime H.265 encoding!
Connections
SDI Video Outputs
2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
Optical SDI
Supports 2 optional SMPTE modules.
SDI Video Loop
4 x reclocked SD/HD/2K/4K linked to corresponding inputs.
SDI Video Repeated Outputs
2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
Analog Video Inputs
1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC.
Analog Video Outputs
1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC.
Analog Audio Inputs
4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
Analog Audio Outputs
4 Channels of professional balanced analog audio via XLR connectors.
Optical Fiber Inputs/Outputs (Optional)
2 x 12Gb/s Optical Fiber.
AES/EBU Audio Inputs
2 Channels unbalanced with sample rate converter on BNC connector.
AES/EBU Audio Outputs
2 Channels unbalanced on BNC connector.
SDI Audio Inputs
16 Channels embedded in SD/HD/2K/4K.
SDI Audio Outputs
16 Channels embedded in SD/HD/2K/4K.
HDMI Video Inputs
HDMI 2.0 type A connector with support for 2160p60
HDMI Video Outputs
HDMI 2.0 type A connector with support for 2160p60
HDMI Audio Inputs
8 Channels embedded in SD/HD/4K.
HDMI Audio Outputs
8 Channels embedded in SD/HD/4K.
Mic Input
1 x 48V microphone input via XLR connector. Phantom Power switchable via software control.
Timecode Input
1 x XLR Input.
Timecode Output
1 x XLR Output.
Sync Input
1 x Reference input. Tri-Sync or Black Burst.
Sync Output
1 x Reference Loop Output. Tri-Sync or Black Burst.
Computer Interface
Thunderbolt™ 3 (Mac OS and Windows), PCI Express 4 lane generation 2.
Power
2 x built-in international AC power supply with IEC C14 inlet. 100-240V, 50-60Hz.
| Capturekort | |
|---|---|
| Grensesnitt mot PC/Mac | Thunderbolt-3 |
| Egenskaper | |
|---|---|
| Tilkobling | XLR, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI, Composite, Komponent, RCA, HDMI |
| USNPSC | 43201531 |
