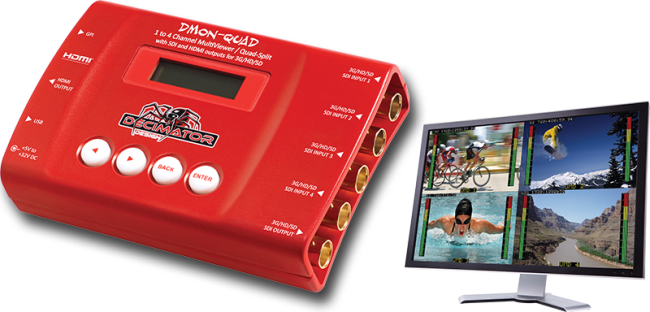

Decimator DMON-QUAD Multiviewer

Varenummer: 503464
Produktnummer: DMON-QUAD
inkl. mva.

  • Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B

  • Low cost (3G/HD/SD)-SDI 1 to 4 Multi-Viewer or 4 to 1 input multiplexer

  • Custom Layouts with various standard layouts

  • 16 Character UMD overlay per window with individual enables, custom positioning and size

  • 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size

  • Horizontal and/or Vertical image flipping per window

  • Audio ID overlay

  • Tallies can be applied to either Tally Boxes (Default) or Border

  • Tally boxes allows for up to 4 Tallies per window

  • Fast switching between inputs using Full-Screen scaling

  • Selectable output format in both Full-Screen Multi-Viewer mode

  • Low latency buffering for each input allowing non-synchronous inputs

  • Linked (3G/HD/SD)-SDI and HDMI outputs

  • 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)

  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

  • Variable aspect ratios per window

  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

  • The DMON-QUAD is a truly portable converter, that incorporates our easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

  • This unit also includes:

  • GPI on RJ-45 connector for Tallies and Remote Switching

  • RS422/485 on RJ-45 connector for Dynamic UMD and Tallies

  • USB port for control and firmware updates

  • Robust Aluminium box

  • Metal Thread Locking DC Power Socket

  • Power Supply, HDMI Cable and USB Cable
