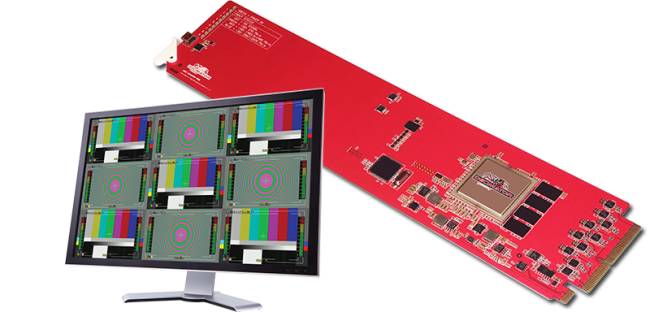

Decimator MC-DMON-9S Multiviewer openGear 9 kanaler

Varenummer: 506007
Produktnummer: MC-DMON-9S
inkl. mva.

  • Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B

  • Low cost miniature (3G/HD/SD)-SDI 1 to 9 MultiViewer or 9 to 1 input multiplexer

  • Custom Layouts with various standard layouts

  • 16 Character UMD overlay per window with individual enables, custom positioning and size

  • 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size

  • Safe Action and Safe Title overlay per window with individual enables and adjustment

  • Centre Cross overlay per window with individual enable

  • Audio ID overlay

  • 3 pin connector on the DR1-10B1G rear module allows for Dynamic UMD and Tallies via RS422/485 using the industry standard TSL protocol

  • Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border

  • Tally boxes allows for up to 4 Tallies per window

  • Fast switching between inputs using Full-Screen scaling

  • Selectable output format in both Full-Screen MultiViewer mode

  • Low latency buffering for each input allowing non-synchronous inputs

  • 9 x (3G/HD/SD)-SDI inputs with auto detection (29 Formats supported in total)

  • Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

  • Variable aspect ratios per quadrant

  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI outputs

  • USB Mini B port for control and firmware updates

  • Supports openGear DashBoard for control

  • The DR1-10B1G rear is sold separately and has 10 BNC connectors and a 3 pin connector for RS422/485
