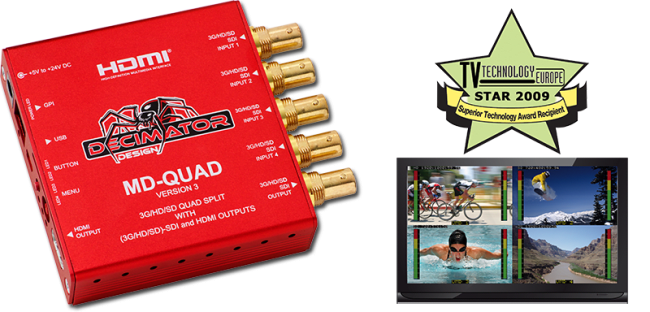

Decimator MD-QUAD V3 Quad-split

Varenummer: 506036
Produktnummer: MD-QUAD
EAN: 5060417390076
inkl. mva.

  • Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.

  • Professional 3G/HD/SD Test Pattern Generator featuring:

  • 26 Selectable Output Formats

  • 54 Test Patterns including Luma and Chroma Zone-plates

  • Audio Tone Generator

  • Horizontal and/or Vertical image flipping per window

  • Low cost miniature (3G/HD/SD)-SDI 1 to 4 channel Multi-Viewer or 4 to 1 input multiplexer

  • Custom Layouts with various standard layouts

  • 16 Character UMD overlay per window with individual enables, custom positioning and size

  • 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size

  • Tallies can be applied to either Tally Boxes (Default) or Border

  • Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)

  • Load and restore Custom Layouts

  • Fast switching between inputs using Full-Screen scaling

  • Selectable output format in both Full-Screen and Multi-Viewer mode

  • Low latency buffering for each input allowing non-synchronous inputs

  • Linked (3G/HD/SD)-SDI and HDMI outputs

  • 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)

  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

  • Variable aspect ratios per window

  • Pass-Through mode allowing any of the 4 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs

  • An extensive selection of user controllable functions via a easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control

  • USB port for control and updates

  • Locking DC Power Socket

  • 5 GPI on standard RJ-45 connector connector for Tallies and Remote Switching

  • RS422/485 is also include on the same RJ-45 connector for Dynamic UMD and Tallies via TSL protocol

  • The following is included with the unit:
    Power Supply, HDMI Cable, USB Cable and Mounting Bracket
