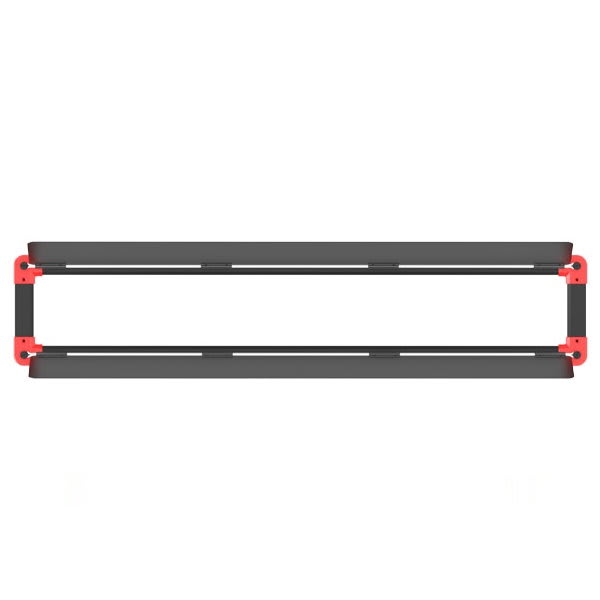

SWIT PL-E90L Panellampe Ultraslim 1:7.5 90W 78x10cm

Varenummer: 511216
Produktnummer: PL-E90L
EAN: 6948193511474
inkl. mva.

90W Long Ratio LED Panel
PL-E90L is a 0.5×3 feet size long aspect ratio light for soft vertical lighting of people. The PL-E family slim size is portable for interview kit application.

21mm Slim Size
Side Mounted SMD-LED.
PL-E90L has SMD-LEDs side mounted on the inner edge of the frame, and with SWIT innovative laser dots 90° reflection board, the light outputs high efficiant bright, soft and even beam to wrap around objects.
The side mounted LEDs greatly reduce the light thickness. It’ s only 21mm, slim and portable for field application.

90W, 2000 Lux @ 1 meter
2700K-6500K Continuously Adjust

PL-E90L mixed with 90W 2700K LEDs and 90W 6500K LEDs, outputs 90W 2200Lux at 1 meter high intensity and any color temperature between 2700K to 6500K, supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

CRI 99, TLCI 99
PL-E90L adopts high end surface mounted LEDs with super high Color Rendering Index (CRI) Ra 99, and Television Lighting Consistency Index (TLCI) 99. Objects will keep their original colors exactly under the light.

Control Panel
The rear control panel supports DMX512 in and out, USB power out for wireless DMX adaptor, DC 11-36V wide input. The LCD screen displays dimmer, color temperature, DMX address and power status.

Rotatable Lighting Angle
PL-E90L provides a light stand connector with 360° rotatable and 180° tiltable.

2-leaf Barn Doors
PL-E90L installed with 2-leaf metal barn doors and also could be removed easily by 4 screws.


  • › 0.5×3 feet long ratio panel light
  • ›  480pcs edge mounted SMD-LEDs
  • ›  Unique 90° light guide technology
  • ›  90W power, 2000Lux @ 1meter
  • ›  0-100% flick-free dimming
  • ›  2700K-6500K continuously adjustable
  • ›  CRI Ra 99, TLCI 99
  • ›  DMX512 control and interaction control
  • ›  USB power out for wireless DMX receiver
  • ›  LCD display color, dimmer, DMX and battery info
  • ›  DC 11-36V wide input voltage
  • ›  Power by V-mount or Gold mount battery
  • ›  With 2-leaf metal barn doors

The single light package includes:
1x PL-E90L light with barndoor
1x Light stand connector
1x AC-DC adaptor
1x Carrying bag

Lystype Panellampe
Antall LED 480
Beam Angle 70 grader
Effekt i Watt 90 Watt
Lysstyrke lux@1m 2000 Lux @ 1 meter
Dimbart 0%-100%
Fargetemperatur Kontinuerlig variabel 2700K - 6500K
Fargegjengivelse CRI 99
Fargegjengivelse TLCI 99
Batterimount standard V-mount
Batterimount opsjon AB-mount
Låvedører Ja
Power 11-36V DC
UNSPSC 39101609
Produktets vekt 4900.0 g
Lengde 83.9 cm
Bredde 16.3 cm
Høyde 2.1 cm
