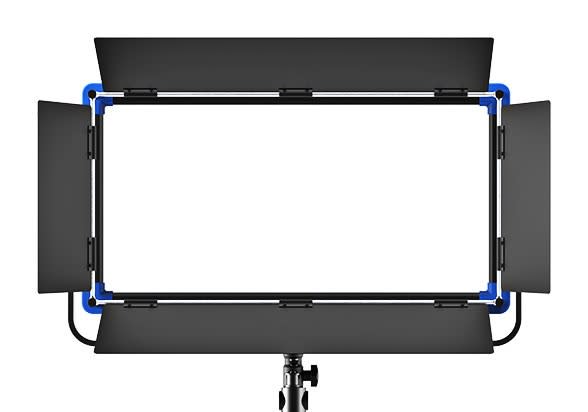

SWIT VANGO-100 RGBW 100W LED Panellampe

Varenummer: 511542
Produktnummer: VANGO-100
EAN: 6948193511498
inkl. mva.

VANGO-100, the slim portable size 100W RGBW panel with extreme high color light output, equivalent to regular 300W RGB color light intensity, for your flexible video studio setup

›  180pcs RGB + 300pcs White SMD-LEDs

›  Edge mounted LEDs, 21mm ultra slim

›  No fan, No noise

›  2:1 size, 100W power, 2200Lux @ 1meter

›  Time-Division drive tech, ultra bright color light

›  CCT/HSI/RGB/CIE/GEL/EFF color modes

›  Built-in 20x Rosco and 20x LEE Gels

›  2800K-10000K, G/M±1.00 adjustment

›  CRI Ra 96, TLCI 93

›  On-board 3.5-inch color LCD visualized color pick

›  DMX512 3bit/6bit/7bit color control

›  DC 11-34V wide input voltage

›  On-board V-mount or Gold mount battery plate

›  IOS/Android APP bluetooth control

›  With 4-leaf barn door and optional 40° honeycomb



21mm Ultra Slim and Soft

With SWIT unique Edge Mounted SMD and 90° high efficient light guide tech, the VANGO-100 has an ultra slim size to only 21mm thickness, and diffused to soft light to paint the entire environment.

Time Division Tech, Brighter Color Light

The regular RGB panels are high bright in CCT mode, but much lower in RGB color mode. That’ s because in a regular RGB light, the RGB color LED and White LED have fixed rates to share the total power of the light, and when output color lights, the RGB LEDs use only 1/3 power.
By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB color LEDs, and greatly increased the intensity of color light. The 100W VANGO-100 color light intensity equals to a regular 300W RGB color light intensity.

Control Panel

VANGO-100 rear control panel supports 5-pin DMX in & out, 4-pin XLR DC 11-36V in, and V-mount battery plate (Gold mount for option), and a large color LCD with menu and hot keys for convenient color picking. The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver.

On-board 3.5-inch Color LCD

Visualized color selection

Bluetooth APP Control

Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control VANGO lights via Bluetooth.



SWIT Console APP

The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects.

Whats in the box:

Lys
Lystype Panellampe
Antall LED 480
Effekt i Watt 100 Watt
Lysstyrke lux@1m 2200 Lux @ 1 meter
Dimbart 0%-100%
Fargetemperatur 2800K-10000K
Fargegjengivelse CRI 96
Fargegjengivelse TLCI 93
DMX Ja
Batterimount standard V-mount
Batterimount opsjon AB-mount
Låvedører Ja
Honeycomb Opsjon
Power 11-34V
Egenskaper
UNSPSC 39101609
