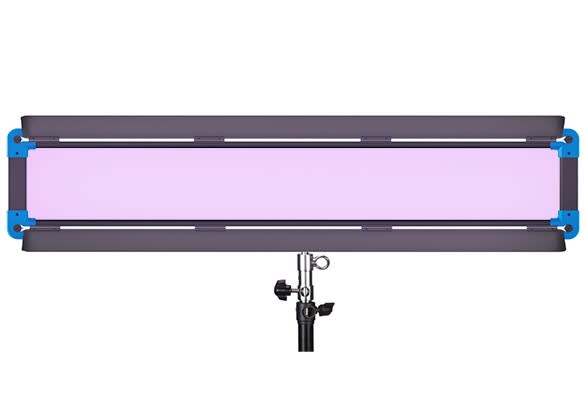

SWIT VANGO-100L RGBW 100W LED Panellampe

Varenummer: 511543
Produktnummer: VANGO-100L
EAN: 6948193511924
inkl. mva.

Slank og plasseringsvennlig panellampe med svært allsidige bruksegenskaper, inkludert RGBW lys, DMX og appstyring, filteremulering med mer.

100W Long Ratio Ultra Slim RGBW

VANGO-100L, the slim portable size 100W RGBW panel of 3x0.5’ Long Ratio size and with extreme high color light output, equivalent to regular 300W RGB color light intensity, for your flexible video studio setup.

›  180pcs RGB + 300pcs White SMD-LEDs

›  Edge mounted LEDs, 21mm ultra slim

›  3x0.5' Long ratio, 100W power, 1800Lux @ 1meter

›  No fan, No noise

›  Time-Division drive tech, ultra bright color light

›  CCT/HSI/RGB/CIE/GEL/EFF color modes

›  Built-in 20x Rosco and 20x LEE Gels

›  2800K-10000K, G/M±1.00 adjustment

›  CRI Ra 96, TLCI 93

›  On-board 3.5-inch color LCD visualized color pick

›  DMX512 3bit/6bit/7bit color control

›  DC 11-34V wide input voltage

›  On-board V-mount or Gold mount battery plate

›  IOS/Android APP bluetooth control

›  With 2-leaf metal barn doors

›  Provide portable 3-light kit



3x0.5’ Long Ratio, 21mm Ultra Slim

With SWIT unique Edge Mounted SMD and 90° high efficient light guide tech, the VANGO-100L has a ultra slim size to only 21mm thickness, and diffused to soft light to paint the entire environment.

Time Division Tech, Brighter Color Light

The regular RGB panels are high bright in CCT mode, but much lower in RGB color mode.
That’ s because in a regular RGB light, the RGB color LED and White LED have fixed rates to share the total power of the light, and when output color lights, the RGB LEDs use only 1/3 power.
By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB color LEDs, and greatly increased the intensity of color light. The 100W VANGO-100L color light intensity equals to a regular 300W RGB color light intensity.

Control Panel

VANGO-100L rear control panel supports 5-pin DMX in & out, 4-pin XLR DC 11-36V in, and V-Mount battery plate (Gold mount for option). It has a large color LCD with menu and hot keys for convenient color picking. The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver.

On-board 3.5-inch Color LCD

Visualized color selection

Bluetooth APP Control

Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control VANGO lights via Bluetooth.



SWIT Console APP

The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects.

Swanneck Strong Ball Head

VANGO-100L provides a strong swanneck ball head for light stand mounting, both junior pin male and baby pin female.

Single Light Package

The single light package includes:
1x VANGO-100L light with barndoor
1x Swanneck ball head connector
1x AC-DC adaptor
1x Carrying bag



3-Light Kit Package

The 3-light kit package includes:
3x VANGO-100L lights with barndoor
3x Swanneck ball head connectors
3x AC-DC adaptors
3x Light stands
1x Trolley case





Lys
Lystype Panellampe
Antall LED 480
Effekt i Watt 100 Watt
Lysstyrke lux@1m 1800 Lux @ 1 meter
Dimbart 0%-100%
Fargetemperatur 2800K-10000K
Fargegjengivelse CRI 96
Fargegjengivelse TLCI 93
DMX Ja
Batterimount standard V-mount
Batterimount opsjon AB-mount
Låvedører Ja
Honeycomb opsjon
Power 11-34V
Egenskaper
UNSPSC 39101609
Produktets vekt 5700.0 g
Lengde 83.9 cm
Bredde 16.3 cm
Høyde 2.1 cm
SWIT S-2712 RGBW SMD LED panellampe, oppladbar

S-2712 er en super allsidig høykvalitets RGBW SMD LED panellampe, med valgfritt hvitt eller farget lys og innebygd oppladbart batteri.

500598
S-2712

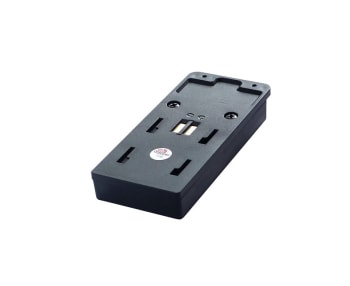

SWIT S-7001I S-8I50 type batteriplate for S-1051C
