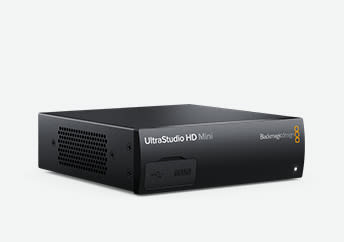

Blackmagic UltraStudio HD Mini videoopptager avspiller

Varenummer:
502159
Produktnummer:
BDLKULSDMINHD

inkl. mva.

Videoopptager avspiller som lagrer på SDXC minnekort

UltraStudio HD Mini features professional broadcast quality connections that include 3G-SDI, analog YUV and composite NTSC/PAL video inputs, along with a reference input. There are also two ¼” audio connections for analog audio input that work with balanced and HiFi sources. In addition, UltraStudio HD Mini can remote control professional broadcast decks using the built in RS-422 connection. For output, you get dual link 3G-SDI with fill and key, and an HDMI connection for monitoring video with a big screen television!


Connections

SDI Video Inputs

1 x 3Gb/s SD/HD switchable.

SDI Video Outputs

2 x 3Gb/s SD/HD switchable, supports fill and key.

SDI Rates

270Mb, 1.5G, 3G

Optical SDI

None

HDMI Video Inputs

None

HDMI Video Outputs

1 x HDMI 1.4b type A connector.

Analog Video Inputs

Y, B-Y, R-Y/NTSC/PAL.

Analog Video Outputs

None

Analog Audio Inputs

2 x 1/4 inch jack connectors for balanced and unbalanced analog audio.

Analog Audio Outputs

None, embedded audio only.

SDI Audio Inputs

16 Channels embedded in SD and HD.

SDI Audio Outputs

16 Channels embedded in SD and HD.

HDMI Audio Outputs

2 Channels embedded in SD and HD.

Timecode Connection

None. RP-188 only.

Reference Input

Tri-Sync or Black Burst.

Egenskaper
Tilkobling HD-SDI, 3G-SDI, Komponent
USNPSC 43201531
