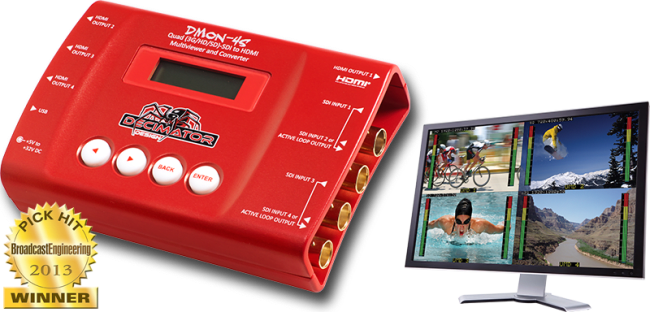

Decimator DMON-4S Multiviewer og Converter 4 kanaler

Varenummer: 503462
Produktnummer: DMON-4S
EAN: 5060417390052
inkl. mva.

fire 3G-SDI innganger til multiviewer eller fire 3G-SDI til HDMI

  • Multi-View mode now includes 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size

  • Support for both 3G level A and B on the inputs.

  • Horizontal and/or Vertical image flipping per window

  • Includes 4 independent mini HDMI outputs that can each output any of the four (3G/HD/SD)-SDI inputs or a Multi-View of all them. For example you could use the unit to have:

  • 4 independent SDI to HDMI converters

  • 3 independent SDI to HDMI converters with a quad-split output

  • 2 independent SDI to 2 x HDMI converters with loop through

  • A single SDI or Multi-View to 4 x HDMI outputs

  • Inputs 2 and 4 can be individually changed to output active loop copies of inputs 1 and 2 respectively.

Multi-View mode offers:

  • Custom Layouts with various standard layouts

  • Load and restore Custom Layouts

  • Fast switching between inputs using Full-Screen scaling

  • Selection of audio from any input

  • 16 Character UMD overlay per window with individual enables, custom positioning and size

  • Low latency buffering for each input allowing non-synchronous inputs

  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

  • Variable aspect ratios per window

  • The DMON-4S is a truly portable converter, that incorporates our new

    easy to use LCD and button control system.

This unit also includes:

  • USB port for control and firmware updates

  • Heavy duty metal box

  • Metal Thread Locking DC Power Socket

  • Power Supply, HDMI Cable and USB Cable



Konvertere
Konverter utgang SDI, HD-SDI, 3G-SDI, HDMI
Konverter inngang SDI, HD-SDI, 3G-SDI
Egenskaper
Tilkobling SDI, HD-SDI, 3G-SDI, HDMI
Strøm AC100V-240V 50/60Hz, 12V
Farge Rød
