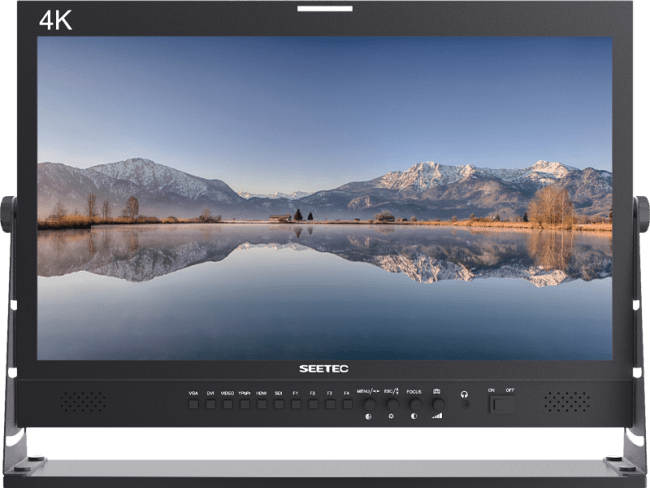

Seetec Monitor P215-9Hsd 21.5 Inch

SEETEC P215-9HSD Professional Broadcast LCD Monitors has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields.

Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.

The full aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation.
Full Aluminum case improves the anti-interference capability! More Stablity and Reliability！

High Quality IPS Panel
P215-9HSD is a 21.5" full HD 1920x1080 resolution, high contrast 3000:1 monitor, with wide viewing angle IPS Panel.
The Color Space is rich and high in performance which brings more details, true color and a better sensory experience for the user.

Wider Viewing Angle
Enjoy Consistent Images from Any Perspective
P215-9HSD uses an IPS panel, which provides a wide 178°/178° viewing angle and brightness output, up to 250nit,
High Contrast 3000:1. This means you'll be able to see accurate, consistent and bright images from any point of view.

Function Buttons for Easy Operation
Most professional applications require the funtions in Professional Broadcast LCD Monitors, such as:
Peaking Focus Assist, Pixel-to-Pixel Mode, Center Marker/ Screen Marker, etc., which can be set on F1~F6 (fast key) on the front panel.

Multiple Inputs and Outputs
Multiple input formats meet the needs of the professional input and display functions with all HD, SD analogue video signal inputs.
The monitor comes with 3G HD-SDI, HDMI, Composite, and Component Input and Ouput.
P215-9HSD has both HDMI and SDI in and out, to allow it not only display live signals, but also send them out to other monitors simultaneously.
It's able to display live picture on multiple displays at the same time while it still maintains the original video quality.

Features

• Wide view angle IPS Screen, Full HD 1920x1080, bright, colorful display
• HDMI, 3G-SDI, Ypbpr, Composite, DVI-I (VGA) and Audio(L/R) inputs
• HDMI, 3G-SDI, Ypbpr,and Compopsite loop-through outputs
• Special Features: Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
• Check Field (Red, Green, Blue, Mono)
• Camera Mode
• Pixel to Pixel
• Center Marker
• Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
• Image Flip (Horizontal, Vertical, Hor&Ver)
• Image Freeze
• Zoom All
• U/D & L/R Zoom
• Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
• Built-in LED tally indicators (Red, Green, Yellow)
• Power using included 12-volt supply or use standard 4-pin XLR

Tekniske spesifikasjoner:
Skjermstørrelse: 21,5"
Batteri-feste: V-mount
Innganger: 3G-SDI, HDMI, DVI-I (VGA), YPbPr, Composite, Audio
Utganger: 3G-SDI, HDMI, YPbPr, Composite
Oppløsning: HD
Inngangsspenning: 12V DC (9 ～ 24V) (XLR 4-pin og DC 5,5mm kontakter)
AC-adapter følger med
Strømforbruk: ≤15W
Arbeidstemperatur: -10 ° C ~ 50 ° C
Lagringstemperatur: -20 ° C ~ 60 ° C
